15pcs Min Spout Premade Pouch Filling Machine Liquid Packaging 300mm Bag Length - China

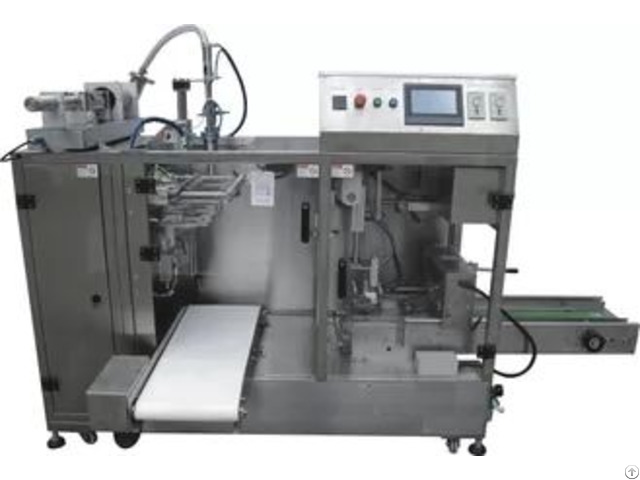

Horizontal Liquid Packaging Machine Premade Pouch Filling Sealing Machine Model No.

AP-1BT (III) AP-1BT-XL AP-1BT-Z

Max.

filling volume(ml) 2000 5000 2000

Bag length (mm) 150-300 200-450 150-330

Bag width (mm) 100-260 200-320 100-260

Max.

Speed (ppm) 6-12 5-10 4-10

Pouch format Flat, Stand-up, Spout, Side gusset pouch, etc… Zipper pouch, etc…

Standard Features Fully pneumatic operating system, easy operation and maintenance.

Integration in existing packaging line.

Pouch feeding conveyor.

Complete manufacture in stainless steel for food industry.

Advanced PLC control system combined with 5.7″ Colorful touch screen control panel, can easily set and change packing parameters, display production data and self-diagnostic machine error can be viewed directly from the screen.

20 sets of programs.

Vacuum Pump for bag pick up and opening.

Optional Dosing Device Piston Pump (for liquid or cream)

Auger screw Filler (for powder)

Electrical Gear Pump (for liquid)

Volumetric Cup Filler or Multi heads weigher (for granule)

Working Principle: Bag Picking-up

Positioning Bag to the filling station

Open Bag

Product Filling (filling device is an option)

Bag Sealing

Bag Outfeed
