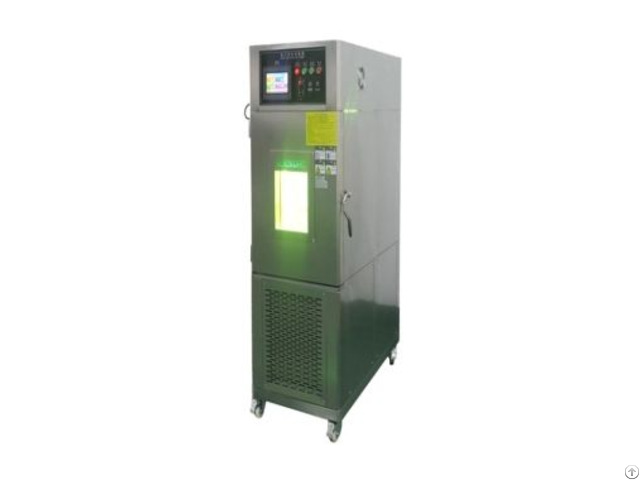

3kw 150l Xenon Lamp Aging Test Chamber Air Cooled - China

Detailed Product Description

standard: Xenon Weathering Test Chamber Xenon Lamp: 3KW

Inner Dimension: 800x800x800 Humid.

Range: 65%— 98% R.

H

Temp.

Range: RT-85º C Wind Speed: 1~1.5m/s

Highlight: 3kw xenon lamp aging test chamber 150l xenon lamp aging test chamber air cooled xenon lamp aging tester Product introduction

Air Cooled Xenon Lamp Testing Chamber is used to determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-perspiration of Geotextile, leather, leatheroid, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab.

Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.

Test Standards

ISO4892-2 ;ISO11341;IS 15351;IS7903;AATCC16E ;AATCC169(1);AATCC TM 16 JASOM346-93;GMW3414TM Ford Interior;ASTM G155-1;ASTM G155-4;ISO 105 B02 Fetures

1 - Presetting various specifications, Custom program capability, meet diverse range of standards, including AATCC, ISO, BS, IS, JIS etc; 2 - Colorful touch screen, indicate the condition of chamber at real-time, be able to presetting irradiance, temperature (BPT, BST, chamber), humidity, and plot dynamic curve of them.

The operator simply selects the required test module and test standards; English user interface, diagram indicate condition of chamber, easy to use; 3 - PLC control, powerful program and storage property, save the parameters when interrupt of power supply.

4 - Chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration.

5 - Custom program capability and storage for additional user-defined tests.

6 - Built-in diagnostics and warnings, automatic prompt when lamp or optical filters require changing.

Multi-position sensor to supervise working condition, temperature, humidity, fan, xenon lamp, and door to chamber, it makes device work properly and reliably; 7 - Use driving clutch to connect turntable and motor, it makes turntable rotate freely and put sample easily without stopping unit; Parameters

Temperature range RT ℃ ~ +80 ℃ light irradiance

Spectral wavelength 290nm～800nm irradiance range 500W～1200W/㎡

Temperature fluctuation ≤±0.5℃

Temperature uniformity ≤2℃

Cooling rate 0.7～1℃/min (non-linear)

Heating rate 3～5℃/min (non linear)

Humidity range 30%～98%R.

H

Humidity fluctuation 3%～4% R.

H

Black board temp.

63+3℃

Light Irradiance Deviation ± 0.01W / m2

Rainfall time/Rainfall cycle 1~9999min, adjustable/1~240min, interval is adjustable

Water supply system Reservoir Water: 20L The water supply for humidification is controlled automatically, and the water for cooling of the lamp is circulated.

High radiation intensity control can reach 2 sun or higher levels

Xenon light source Air-cooled xenon lamp 3KW, life of more than 1200 hours, easy to disassemble

Insulation material quality polyurethane foam 100mm

Inner box material imported SUS304 stainless steel

Outer box material size high quality cold rolled steel plate paint

Sensor Platinum resistance; Pt100Ω/mv

Dimensions of the working chamber(mm) (500×600×500)(W×D×H) 150L
