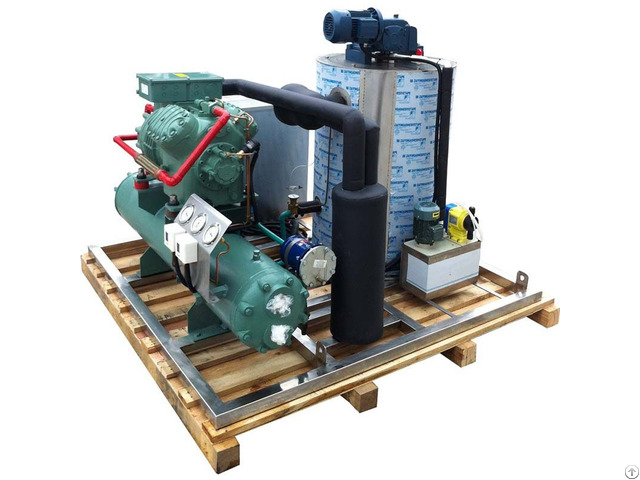

8t Day Marine Flake Ice Machine - China

The marine ice machine is a kind of sea water ice machine installed on the fishing boat.

8T/Day Marine Flake Ice Machine Application

The flakes have no sharp edges and corners and will not stab frozen objects.

It can enter the gap between the objects to be cooled, reduce heat exchange, maintain the temperature of ice, and have a good moisturizing effect.

Flake Ice Feature

The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.

High Reliability and Low Breakdown Rate

High Efficiency and Energy Saving

Simple Maintenance and Convenient Moving8Ton/Day Industrial Flake Ice machine More information please view here.

specificatio Item Name Sea Water Ice Machine Fresh Water Ice Machine

Model YTC-8TS YTC-8TF

Compressor power 50HP 40HP

Ice Evaporator Stainless Steel 304 Carbon Steel

Daily Output 8000kg/24H 8000kg/24H

Ref.

Capacity(Kcal) 51600 41280

Temp.

Evaporator(℃) -18(℃) -22(℃)

Temp.

Condenser(℃) 40(℃) 40(℃)

Total Power (kw) 41.84 35.24

Cooling Mode Air Cooled Air Cooled

Power Supply 380V/3PH/50Hz 380V/3PH/50Hz

Refrigerant R404 R404

Unit Weight 1180 1020

Unit Size 2300x 1900x 1720mm 2300x 1900x 1720mm

Ice Storage Size 2300x2300x2000 2300x2300x2000
