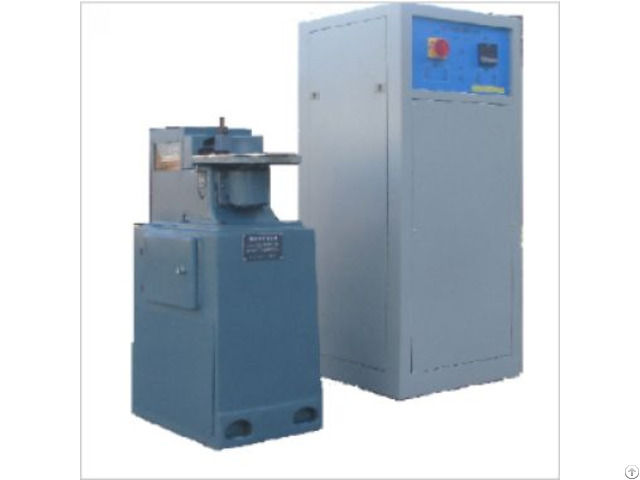

Abrasive Wear Testing Machine - China

Standard

ASTM G65 - 04 GB/T 3960-1983 Main Purposes

The wet - type rubber wheel abrasive wear testing machine is primarily employed to assess the wear - resistance of metal materials when they are in frictional contact with solids like sand, ores, and sediment.

Through these tests, the capabilities of various metal materials to resist abrasive wear can be ascertained, and investigations into the abrasive wear mechanism can be carried out.

This empowers the design, production, and scientific research departments related to mining machinery, construction machinery, transportation machinery, agricultural machinery, and so on to choose appropriate metal materials and manufacturing processes.

Structural Features

This testing machine is composed of two components: the main unit and the control system.

The main - unit part comprises the machine base, main shaft and drive system, dead - weight loading system, and specimen clamping device.

The control system includes the measurement and control section as well as the display instrument section.

The two sections are linked by a control cable Technical parameters

Load: 100 Newton Disc speed: 60 - 120 rpm Sample feed: 1 - 2 - 3 - 4 mm / turn Sample diameter: 2 - 3 - 4 mm Auto-control system counting range: 0-99999999 (can be stopped at a given number of revolutions) Overall dimensions: 560 × 540 × 1020mm Weight: 350Kg
