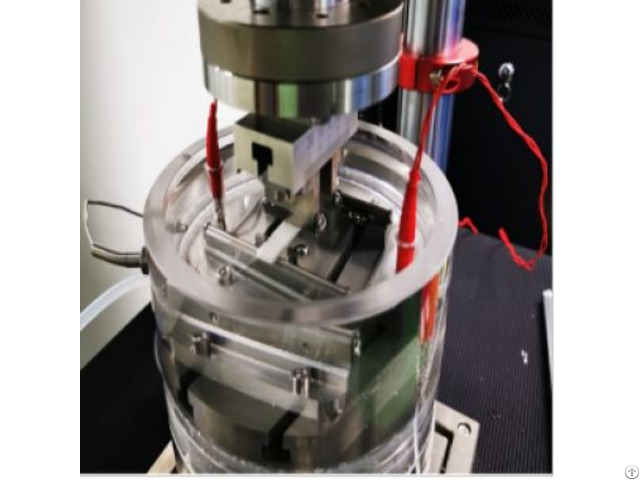

Absorbable Bone Connecting Plates Four Point Bending Tester - China

Standard ASTM F2119: Standard test method for constant load testing of bioabsorbable screws and washers, applicable to bending performance evaluation.

ISO 10993-1: Biological evaluation of medical devices, ensuring compatibility with biodegradable material testing.

YY/T 0342: Chinese standard for bending strength and stiffness testing of metallic bone plates (adapted for bioabsorbable materials).

Product Advantages

Biodegradable Material Expertise:

Optimized for polymers (PLA, PGA) and composites, with adjustable test parameters to accommodate degradation-induced property changes.

Environmental control options (37°C ± 2°C, pH-regulated media) for simulating in-vivo conditions.

Precision Four-Point Bending:

Electromagnetic load frame with ±0.1% force accuracy, ensuring compliance with ASTM F2119’s resolution requirements.

Adjustable span ratios (10: 1 to 20: 1) for tailored stress distribution analysis.

Advanced Data Acquisition:

Real-time monitoring of force, displacement, and bending modulus with 5000Hz sampling rate.

Automatic calculation of key parameters: bending strength (MPa), flexural modulus (GPa), and strain-at-break.

User-Centric Design:

Intuitive software with preloaded SOPs for ASTM F2119 and ISO 10993-1 compliance.

Multi-language interface (English/Chinese/Spanish) and exportable reports (PDF/Excel/CSV).

Durability & Safety:

Corrosion-resistant components and overload protection system for long-term reliability.

Low-noise operation (<65 dB) suitable for laboratory environments.

Product Features

Load Capacity: 5 kN (axial) / 250 Nm (torsional).

Force Resolution: 0.001 N (axial) / 0.0001 Nm (torsional).

Displacement Accuracy: ±0.1 μm.

Testing Modes:

Bending stiffness (ASTM F2119).

Bending strength (YY/T 0342 adaptation).

Creep testing (constant load over time).

Software Suite:

Customizable test profiles with automated pass/fail criteria.

21 CFR Part 11 compliance for audit trails and electronic signatures.

Calibration: NIST-traceable certification included, with annual recalibration available.

Technical Parameters

Parameter Specification

Force Range 1 N–5 kN (axial)

Torque Range 0.01–250 Nm (torsional)

Crosshead Speed 0.001–500 mm/min

Temperature Range Ambient (optional: 37°C ± 2°C with chamber)

Power Supply 220V/110V, 50/60Hz

Dimensions (W×D×H) 500×400×1, 200 mm

Weight 200 kg

Compliance CE, ISO 13485, ASTM F2119, ISO 10993-1

Accessories Standard Kit:

Four-point bending clamps (6mm, 9.5mm, 13mm rollers).

Calibration weights and digital torque wrench.

Test control software with preloaded SOPs.

Optional Upgrades:

Environmental chamber (37°C, pH 7.4 simulated body fluid).

Custom fixturing for pediatric/specialized bioabsorbable plates.

Remote diagnostics and preventive maintenance package.

Creep testing module (constant load up to 1, 000 hours).
