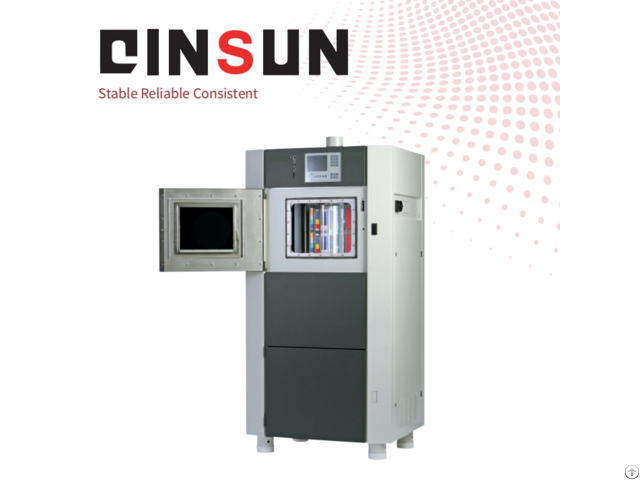

Air Cooled Xenon Lamp Aging Chamber - China

Standard Compliance

ISO 4892-2 (Lightfastness and Weathering) ASTM G155 (Xenon Arc Exposure of Plastics) IEC 68-2-5 (Environmental Testing – Solar Radiation) SAE J2527 (Automotive Exterior Materials) Product Advantages

Energy-Efficient Air Cooling System Eliminates the need for water chillers, reducing energy consumption by up to 40% compared to traditional water-cooled models.

Low-noise operation (<60 dB) ensures a quiet testing environment.

Cost-Effective Maintenance No water pipes, filters, or coolant replacements required.

Simplified design minimizes downtime and maintenance costs.

Rapid Thermal Cycling Achieve temperature shifts from -20°C to 80°C in <10 minutes, accelerating test cycles without compromising accuracy.

Advanced Spectral Control Precision filters mimic natural sunlight (UV, visible, and IR spectra) for realistic aging simulation.

User-Centric Design 10.4” touchscreen with intuitive interface, multi-language support, and remote monitoring via Wi-Fi/Ethernet.

Product Features

Dual-Mode Cooling Technology Combines forced-air convection with a high-efficiency heat sink to stabilize lamp temperature during prolonged tests.

Intelligent Irradiance Control Closed-loop feedback system maintains ±0.02 W/m² irradiance accuracy (300–400 nm range).

Programmable Climate Control Independent settings for temperature (-20°C to 100°C), humidity (10%–95% RH), and rainfall simulation (0–50 cycles/hour).

Safety First Overheat protection, emergency stop, and UV-shielding acrylic door ensure operator safety.

Modular Expandability Add-on modules for ozone control, salt spray corrosion, and mechanical stress testing.

Technical Parameters

Specification Details

Xenon Lamp Power 1.8 kW (Air-Cooled, 6500h lifespan)

Test Chamber Size 700 × 500 × 500 mm (W×D×H)

Temperature Range -20°C to 100°C (±2°C accuracy)

Humidity Range 10%–95% RH (±3% accuracy)

Irradiance Range 30–120 W/m² (300–400 nm, adjustable)

Test Cycles 1–9999 hours (programmable intervals)

Power Supply 220V/50Hz/60Hz, 20A (Single-phase)

Dimensions (W×D×H) 1200 × 800 × 1800 mm

Weight 350 kg (Net)

Accessories Included

Standard Kit: 1 × Air-Cooled Xenon Lamp (6500K) 2 × Adjustable Sample Racks (Max.

10 kg load) 1 × Calibrated Radiometer 1 × USB Data Logger (16GB) 1 × UV-Resistant Acrylic Viewing Window Optional Add-Ons: Humidity Control Module (-20°C to 80°C, 10%–95% RH) Remote Monitoring Software (IoT-enabled) Multi-Language Interface Pack (10+ Languages) Spare Lamp Kit (2x Xenon Lamps + Filters)
