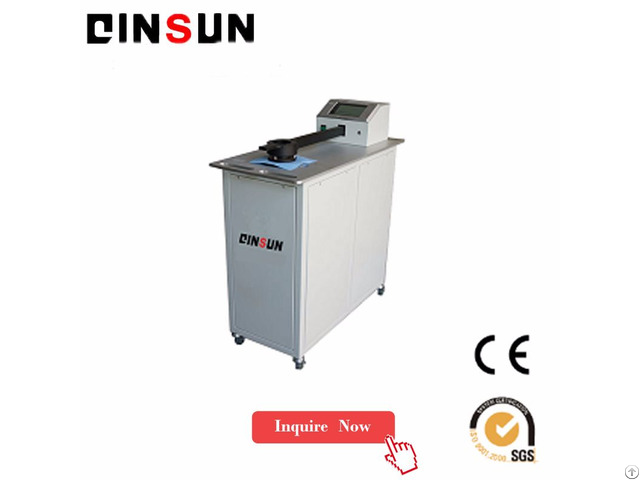

Air Permeability Tester Test Machine For Laboratory Quality Control - China

Air Permeability Tester of textile fabrics complies with ASTM D737, ISO 9237/7231, BS 5636, etc.

It is used to test the resistance of the flow of air through fabrics.

There is different air permeability test method to do air permeability testing for textiles, we can offer all the test methods and competitive price.

Testing Standards:

BS 5636, JIS L1096-A, DIN 53887, ASTM D737, ASTM D3574, EN ISO 9237, GB/T 5453, EDANA 140.2, TAPPI T251, EDANA 140.1, ASTM D737, AFNOR G07-111, ISO 7231 Applications:

The Air Permeability Tester accurately and swiftly determines the resistance of fabrics (woven, knitted and nonwoven textile) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.

The air permeability of the fabric is calculated automatically within a short time.

Air Permeability Tester Technical Parameters:

1 - Test head: 5cm2, 20cm2, 25cm2, 38cm2, 50cm2, 100cm2;

2 - Test mode: Automatic;

3 - Pressure range: 10-3000Pa;

4 - Air velocity: 0.1-40000mm/s(5cm2);

5 - Test time: 5-50s;

6 - Deceleration time: 3s;

7 - The total test time: 10-58s;

8 - Minimum pressure: 1Pa;

9 - Maximum pressure: 3000Pa;

10 - Accuracy: ±2%;

11 - Measurement units: mm/s, cfm, cm3/cm2/s, l/m2/s, l/dm2/min, m3/m2/min and m3/m2/h;

12 - Data port: RS232C;

13 - Pressure system: automatic pressure adjustment (available for larger test area);

14 - Mute suction pump;

15 - Automatic identification system for test head and automatic adjustment for pump;

16 - Custom setting function for actual need;

17 - Automatic switch between coarse and fine adjustments.

Fully enclosed pipe ensures leakage lower than 0.1l/m2/s.

Air Permeability Tester Basic Configuration：

Sample Holder 5cm2;

Sample Holder 20cm2;

Sample Holder 25cm2;

Sample Holder 38cm2;

Sample Holder 50cm2;

Sample Holder 100cm2;

Calibration plate
