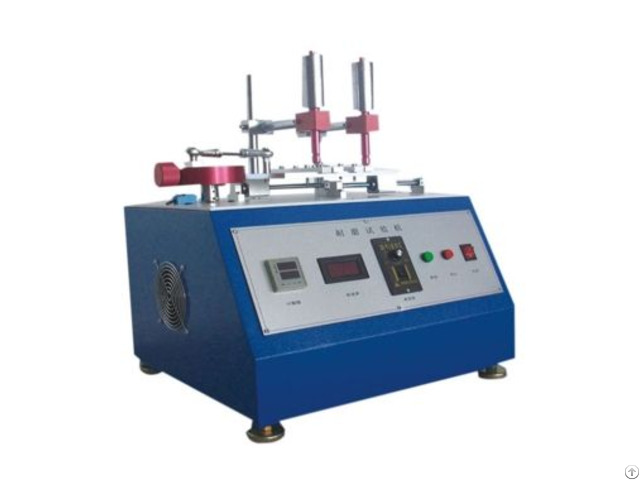

Alcohol Abrasion Device - China

Meet the standard:

ASTM D6279 AATCC Test Method 8 / ISO 105-X12 ASTM D3363 UL 969 / UL 2601-1 Product Features:

Reciprocating Motion System: Utilizes a variable convex shaft structure and Japanese original ball drive for precise and smooth back-and-forth movement.

Double Test Stations: Allows for testing two samples concurrently.

Adjustable Working Stroke: User-definable rubbing stroke from 2mm to 50mm.

Adjustable Working Speed: Variable rubbing speed from 10 to 60 cycles per minute (rpm).

Digital LCD Counter: Displays the number of friction cycles up to 999.999 - Multiple Friction Groups: Four independent friction groups to hold different friction media.

Load Application System: Includes a set of calibrated weights (100g, 200g, 300g, 500g, two of each) for applying precise loads.

Versatile Friction Medium Compatibility: Designed to accommodate various friction media such as eraser, alcohol/cotton, steel velvet, and sheepskin.

Workpiece Table: A substantial table (400x200mm) to secure test samples.

Motorized Drive: Powered by a 25W motor for consistent operation.

Technical parameters:

Weight: 100g, 200g, 300g, 500g 2 each Test material: Eraser, alcohol/cotton, steel velvet, sheepskin (user's own) Counter: 0—— 999.999 LCD Working stroke: 2——50mm adjustable Working speed: 10——60rpm adjustable Number of friction groups: 4 groups Motor: 25W Power supply: 220V/50Hz Volume (L x W x H) : 500x460x550mm Weight: 26Kg Workpiece table size (length x width) : 400x200mm
