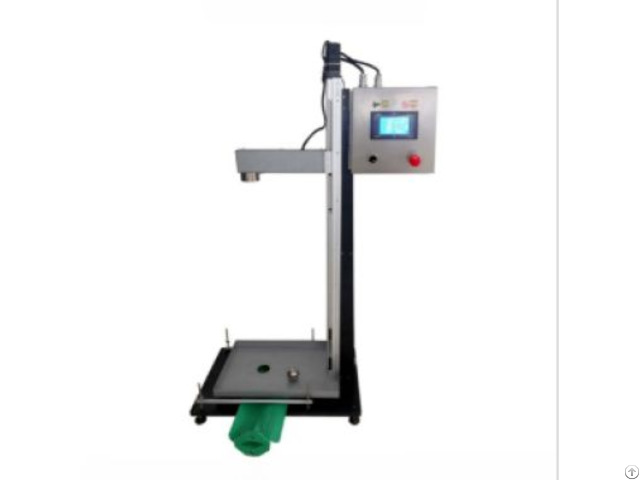

Anti Glare Panel Falling Weight Tester - China

Meet the standard

GB/T24718-2023, GB/T 24718-2009, JTG/T D33-2012 Scope of application

The anti-glare board impact testing machine is designed and produced for each testing unit to measure the impact resistance of the anti-glare board, which is suitable for plastics, plastic products ceramics, glass fiber, tempered glass and other materials and test the hardness of coatings.

Instrument features

With a sample holding device, to prevent inaccurate results caused by random sample projectiles; With protective protection plate, to prevent the ball from secondary collision with the sample and the ball bounce injury; Double overshoot protection, the overshoot motor automatically stops, need to be manually lifted to prevent damage to the instrument and protect the user; Program with automatic memory function, power off or unplug, is still the memory setting before power off; Motor with holding brake function, the arm will not slide down in the case of power failure; Laser rangefinder ranging, ranging accuracy; Two modes of operation, namely automatic and manual two ways; Low-voltage components such as: brand buttons, relays, AC contactors, etc., stable performance, safe and reliable; Easy to install, easy to operate, long service life.

Standard configuration

1 - One host 2 - 1 standard iron ball 3 - One national standard power cable 4 - Product packing list 1 copy 5 - 1 copy of product manual 6 - One copy of product certificate Technical parameters

Electromagnet suction 50kg The steel ball weighs 1kg±10g Steel ball diameter 63mm Cantilever extension length 350mm(310mm from the center of the ball) Cantilever lifting stroke 300mm(i.e. impact height can be adjusted at 900-1200) Laser sensor measurement accuracy 1mm The laser sensor has an error of 5 parts per thousand Laser spot 0.5-1mm The diameter of the anti-secondary impact partition is 65mm, and the height is adjustable from 20-110mm Weight 130kg
