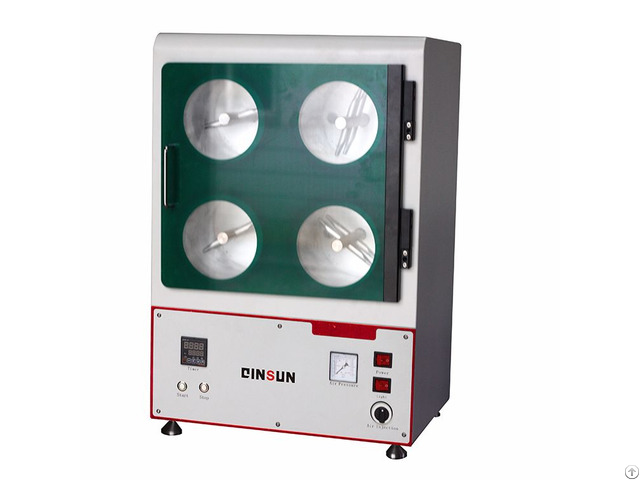

QINSUN four test chambers ASTM D3512 fabric random tumble pilling tester is used to determine the pilling and fuzzing characteristics of textile fabrics.

The test specimens with dimensions of 105×105mm are put in the chambers.

The stainless steel impellers rotate within individually lit aluminium chambers constantly tumbling test fabrics against cork liners for a predetermined time controlled by a timer and audible alarm.

Compressed air is also injected into the chamber to assist in the tumbling action.

Adjustable of the pressure.

Standards:

ASTM D3512, GB/T 4802.4, ISO 12945.3, JIS L1076-D Technical Parameters:

1 - 4 test chambers;

2 - Equipped with a rotating stainless impellers in each test chamber;

3 - Reliably Sealing of the testing chambers;

4 - A digital electronic counter;

5 - A buzzer to remind the end of test;

6 - Equipped with pressure gauge and the timer;

7 - Dimension of Drum: 146×152mm;

8 - Dimension of Cork liner: 452×146×1.5mm;

9 - Rods: L=121mm;

10 - Rotating speed: 1200r/min;

11 - Compressed air: 0.014-0.021MPa.

Instrument Configurations:

1 - Pilling Photographic Standards;

2 - Cork Liner (Pack of 50);

3 - Cotton Sliver (9m);

4 - Mute air compressor (optional);

5 - Other necessary accessories recommended by manufacturer.
