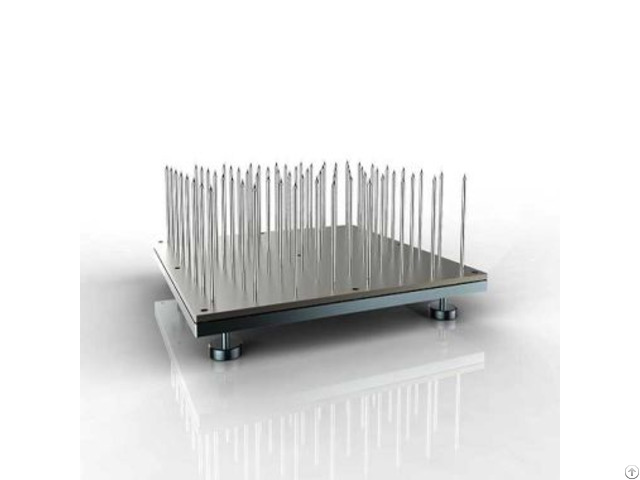

Astm F963 Nail Bed Flammability Testing Apparatus - China

1 - Place the sample on the burner, measure the length, and then ignite candles with flame height of 16 mm, so as to ignite the sample by the top flame for 5 s, remove the flame, re-burn for 5 s or burn to the other end of the spindle to calculate the burning speed.

2 - The burner is designed according to the standard requirements, and the whole machine is made of stainless steel.

The design structure is compact, easy to use and long in service life.

Applicable standards:

16 CFR 1510 ASTM F963 4.6.2 Product Advantages:

Ensures Optimal Protection: Verifies that the mask forms a proper seal, guaranteeing that the wearer receives the intended level of protection against airborne hazards.

Compliance with Regulations: Helps organizations and manufacturers meet mandatory fit testing requirements set by occupational safety and health regulations and standards.

Objective Measurement (for QNFT): Provides a quantitative Fit Factor, offering a precise and objective measure of mask seal effectiveness, unlike subjective qualitative tests.

Versatile Application: Can be used to test various types of tight-fitting face masks, including filtering facepieces (like N95s), half-face respirators, and full-face respirators.

User-Friendly Interface: Modern testers are designed with intuitive controls and software, making the testing process straightforward for operators.

Comprehensive Data Analysis: Software typically allows for data logging, analysis, and reporting of fit test results for record-keeping and compliance purposes.

Field Application G963 Field Application, The burning performance test of cloth toys and plush toys is often used to test the flammability of the fluff flammable parts, and the burning time is recorded to judge whether the flammability of the burning part meets the standard requirements.

Technical Parameters

Test mode: manual Number of support nails: 64 Material: Stainless steel Supporting nails margin distance: 0.62 inches (15.7mm) Screw size: #10-32× 0.38 inches (long)

Number of screws: 9 Support nails center distance: 4.69 inches119mm) Screw margin: 0.31 inch (7.8mm)

Screw spacing: 1.25 inches (31.75mm)

Support nails size: #8d X 2.50 inches (long) Upper pressing plate size: 257X257x3mm Test mode: manual Lower pressing plate size: 254X255.5x6.35mm Material: Stainless steel Weight: 8kg Screw size: #10-32× 0.38 inches (long)

Number of screws: 9 Appearance size : : 250mmX260mmX150mm Test method:

Preparation Prepare the sample, place it on the equipment, and measure the length of the sample.

Ignition operation: Use a candle with a flame height of 16mm to ignite the sample with the top of the flame for 5s.

Observation record: Remove the flame, observe the burning for 5s or burn to the other end of the main shaft, and calculate the burning rate.
