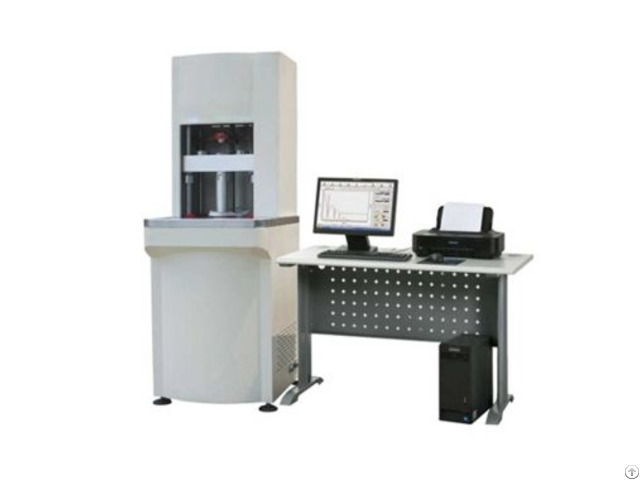

Athletic Footwear Shock Attenuating Tester - China

Standard

SATRA TM142 ASTM F1614 ASTM F1976 Product Advantages

1 - Uncompromising Precision Hemispherical Impactor: 45mm diameter (37.5mm radius) ensures repeatable contact geometry.

8.5kg Calibrated Mass: ±0.01kg tolerance for ISO 179-1 equivalent energy calculations.

2 - Versatile Testing Multi-Material Compatibility: Evaluates EVA foams, gels, composites, and corrugated packaging.

Adjustable Drop Height: 10–1.000mm range for low-speed to high-energy impacts.

3 - Advanced Sensing Dual-Channel Acquisition: Simultaneously captures acceleration (10.000 Hz) and displacement (0.01mm resolution).

Auto-Calculated Metrics: Rebound energy, indentation depth, and damping ratio displayed in real-time.

4 - User-Centric Design Quick-Release Mechanism: Tool-free height adjustment via magnetic safety interlocks.

7” Touchscreen HMI: Pre-loaded SATRA TM142 protocols with adjustable test parameters.

5 - Data Integrity 21 CFR Part 11 Compliance: Audit-ready electronic records with e-signatures.

Cloud Integration: Wireless sync to LIMS platforms for collaborative R&D.

Product Features

Impact System: Servo-controlled release mechanism with 0.1mm positional accuracy.

Hardened steel impactor with tungsten carbide coating for wear resistance.

Sensing Suite: Piezoelectric accelerometer (±5.000g range).

Laser displacement sensor (0.01mm resolution, 500mm range).

Safety Systems: Acrylic enclosure with interlock sensors.

Emergency stop with E-Stop loop monitoring.

Software Bundle: ShockVision Pro™: Real-time force-time curves and energy loss calculations.

MaterialDB: Store/compare test results across material batches.

Data Management: USB 3.0 port for raw data export.

API integration with MATLAB/Python for custom analysis.

Accessories & Options

Calibration Kit: NIST-traceable accelerometer and displacement sensor.

Weight verification set for impactor mass.

Software Add-Ons: Fatigue Predictor: AI-driven lifespan estimation via cumulative damage modeling.

CloudLink: Remote monitoring for global teams.

Safety Upgrades: Explosion-proof enclosure for solvent-resistant testing.

HEPA filtration for particle-sensitive labs.

Custom Fixtures: High-temperature clamps for thermoplastic testing.

Cryogenic chamber adapter for low-temperature impact studies.

Consumables: 20 × Disposable sample alignment targets.

1L Silicone lubricant for high-cycle testing.

Technical Parameters

Specification Details

Impact Mass 8.5 kg ±0.01 kg (18.7 lbs)

Drop Height Range 10–1.000 mm (0.4–39.4”)

Max.

Impact Velocity 4.43 m/s (1.000mm drop)

Accelerometer Range ±5.000g (1g = 9.81 m/s²)

Displacement Resolution 0.01 mm (0.0004”)

Data Rate 10.000 Hz (acceleration)

Power Supply 220V/50Hz (110V/60Hz available)

Dimensions (W×D×H) 600mm × 500mm × 1.800mm

Weight 150 kg (net)
