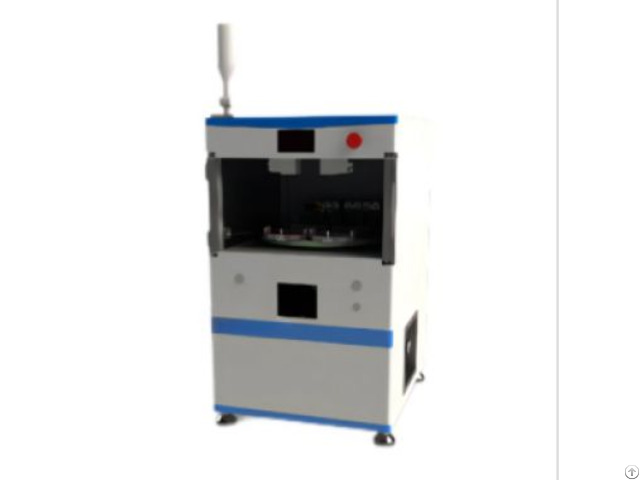

Automated Voltage And Internal Resistance Measuring Device - China

Standard

ASTM E83: Standard Test Method for Verification of Linear Displacement Measuring Systems ISO 3611: Calibration of Measuring Instruments – Verification of Linear Measuring Instruments IEC 62660-2: Secondary Lithium-Ion Cells – Part 2: Reliability and Abuse Testing RoHS Compliance (Restriction of Hazardous Substances) CE Certification (Conformité Européenne) Product Advantages

Micron-Level Precision 0.1 μm Resolution: Captures subtle thickness variations in pouch, cylindrical, and coin cells.

Non-Contact Laser Sensor: Eliminates mechanical interference for pristine data.

High-Speed Measurement 50 mm/s Scan Rate: 10x faster than traditional micrometers.

Auto-Focus Technology: Maintains accuracy on curved/textured surfaces.

Multi-Material Compatibility 0–50 mm Range: Tests bare cells, laminated pouches, and module stacks.

Adjustable Force Control: 0.5–5 N for delicate solid-state electrolytes.

Smart Data Integration Bluetooth 5.3 Connectivity: Syncs with MES/ERP systems for real-time SPC.

AI-Powered Analytics: Flags out-of-spec batches and predicts tool wear.

User-Centric Design 7” HD Touchscreen: Multi-touch gestures for zoom/pan on live measurement graphs.

Voice-Activated Controls: Hands-free operation during repetitive tasks.

Technical Parameters

Parameter Specification

Measurement Range 0–50 mm (0–2 inches)

Accuracy ±0.5 μm (±0.00002”)

Repeatability ±0.2 μm (±0.000008”)

Data Acquisition Rate 10.000 points/second

Power Supply 100-240V AC, 50/60Hz (universal adapter)

Dimensions 300mm (W) × 250mm (D) × 400mm (H)

Weight 15 kg (net) / 18 kg (gross)
