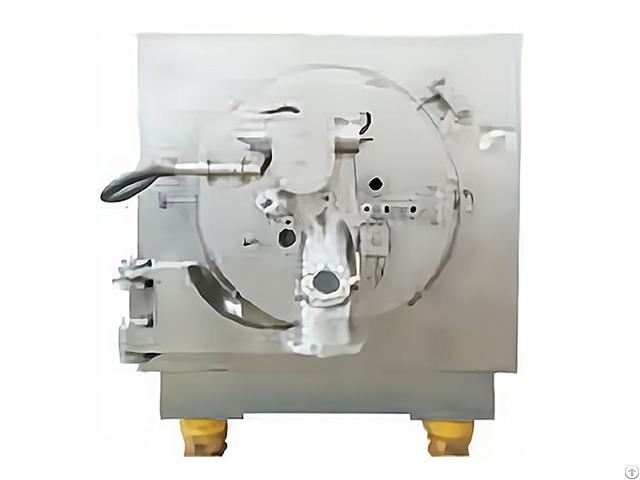

Automatic Centrifuge Rygkc - China

Properties and Uses

RYGK (F) / RYGKC series fully automatic horizontal scraper unloading centrifuge is a solid-liquid separation equipment of continuous operation and intermittent unloading.

The centrifuge using PLC program control, through frequency frequency regulation, braking system using energy braking or feedback braking, through material level detection, speed detection, shaft temperature detection, vibration detection of automatic cycle (including feeding, separation, dehydration, washing, unloading process), also can choose the manual operation mode, manual operation mode and automatic operation mode.

You can switch freely.

RYGK (F) series automatic horizontal scraper unloading centrifuge is generally used for solid and liquid separation of fine particles, can also be used for solid and liquid separation of toxic, flammable, explosive media, solid material emissions can be through the bucket can also use the cage spiral transport.

It is mainly used in the solid-liquid separation and separation of raw material intermediates and finished products in chemical and pharmaceutical fields.

RYGKC series automatic horizontal scraper unloading centrifuge, for the wall installation type, can distinguish the power area and production away, use in the demanding pharmaceutical industry, the centrifuge can open the whole shell cylinder, easy to check and clean.

Model/ Item RYGK(F)-600 RYGK(F)-800 RYGK(F)-1050 RYGK(F)-1250 RYGK(F)-1250A RYGK(F)-1350 RYGK(F)-1600 RYGK(F)-1600A RYGK(F)-1800

Drum diameter(mm) 600 800 1050 1250 1250 1350 1600 1600 1800

Drum Height(mm) 315 400 500/630 500 630 680 800 1000 1250

Drum volume (L) 41 100 210/260 265 335 500 700 840 1390

Loading capacity (Kg) 53 130 230/280 350 430 650 900 1000 1800

Max.

Speed(r/min) 2400 1500/1600 1400/1700 1200 1200 1200 950 950 900

Maximum separating factor 1931 1007/1145 1150/1696 1006 1006 1086 808 808 815

Motor power (Kw) 18.5 30 37/55 55 55 55 90 90 132
