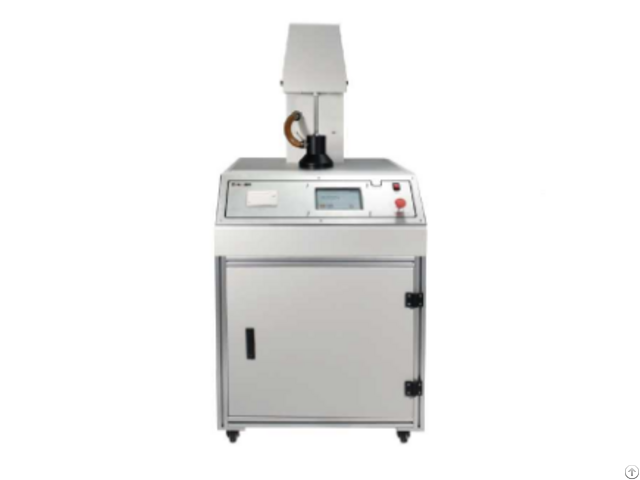

Automatic Filter Performance Tester - China

The latest G506 automatic filter performance tester uses the most advanced technology and design concepts, to meet a variety of test standards and the latest National standard GB / T 32610 - Only relatively little operation is required to complete all the function and operation.

Hardware performance of G506 mask automatic filter performance tester is stable and excellent in repeatability.

Software design meet with people’s thinking mode, the interface is user-friendly, and the functional and parameter settings are very reasonable.

It is convenient to user for academic research and product development.

Application

G506 Automatic Filter Performance Tester is used for testing professional filter material and filtration efficiencyof a wide range of air filters including HEPA and ULPA filter, respirator, filter cartridge and protective clothing test.

It also can use salt or oil mist to test filter media.

Rapid acquisition of filter media performance evaluation parameters, and accurate evaluation of filter material quality, performance, life and so on.

It is convenient to user for academic research and product development of new filter materials, product quality control, material performance verification.

Standards

ASTM F2100: Standard Specification for Performance of Materials Used in Medical Face Masks EN149: Respiratory protective devices – Filtering half masks to protect against particles – Requirements, testing, marking NIOSH-42 CFR84: NIOSH Guide to the Selection and Use of Particulate Respirators(或 42 CFR Part 84 – Approval of Respiratory Protective Devices) Parameters

Items Parameter

Apllication Load and quality control

Max Efficiency 99.999%

Aerosol Type DOP/PAO/DEHS/Paraffi/Othe rs Oil Aerosol、Salt

Aerosol Generation Atomizing

CMD 0.2μm(Oil)or 0.75um(NaCl)

GSD ＜1.6(Oil)or <1.86(NaCl)

Flow Rate 15-100L/min

Resistance 0-150mm H2O(0-1470Pa)

Particle Detect Scatter Photometer

Measurement Time 10 Sec.

Data Report LCD, RS-232

Operation Independent tewster、automatic production line

Standard compliant US 42 CFR part 84 - EN 143 - JMOL, ISO 23328-1 ISO 16900-3

Power Supply 115VAC、60Hz, 10A或230VAC, 50Hz, 5A

Compressor Air 80psig, 7scfm(550kPa, 198std.

L/min)

Dimension 70cm x 70cm x 147cm(28in, x 28in.

x 58in.

)

Feature

Complies to more standards than any other filter tester Salt and oil testing in one unit Highly consistent test results New user-interface and data recording options Customizable fully automated testing sequences Ergonomic design Reduced cost of ownership with new serviceable photometers Worldwide service and support
