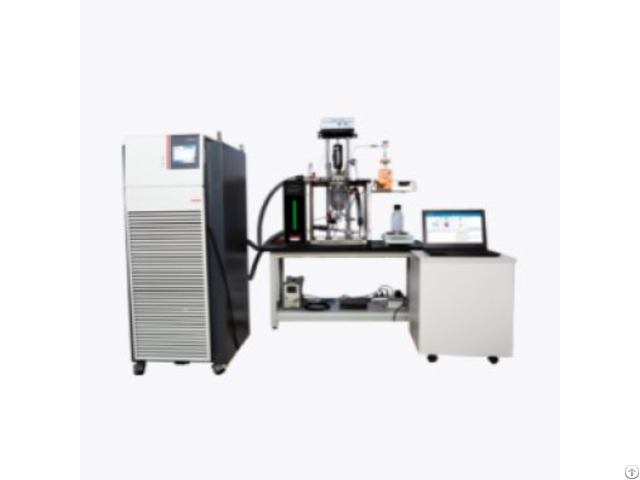

Automatic Reaction Calorimeter - China

Standards

GB 51283 GB/T 22232 GB/T 17802 SN/T 3078.1 Product Features

1 - It offers three calorimetry methods: heat - flow, power - compensation, and reflux, allowing users to choose according to their needs.

2 - It supports multiple operation modes such as isothermal, constant - temperature, and scanning.

3 - Optional glass normal - pressure reaction vessels, glass medium - pressure reaction vessels, and metal high - pressure reaction vessels are available.

4 - It has an external database, and one system supports the interchange of multiple sets of reaction vessels.

5 - With high - power heating and cooling units, it features fast temperature - control response and high - precision exothermic measurement.

6 - Automatic feeding control can be achieved by mass or volume measurement.

7 - It can accurately measure and obtain process - safety - related data such as reaction heat - flow, reaction enthalpy, conversion rate, specific heat capacity of samples, adiabatic temperature rise, and the maximum temperature that an out - of - control system can reach.

8 - The Chinese - language software platform enables flexible programming of experimental procedures, real - time monitoring of key reaction - process data, and online modification of experimental procedures and parameters.

9 - It can display the temperature inside the vessel, the temperature of the jacket, the mass of the added materials, and other test status information in real - time.

10 - The safety thresholds for key parameters and states can be set.

In case of reaction out - of - control, it can be quickly cooled with one click, and it will issue alarms and automatically stop in case of abnormal states, effectively ensuring safety.

11 - It can automatically generate and save charts and data, and export experimental analysis reports.

Technical parameters

Calorimetry Method Heat Flow, Power Compensation (Option), Reflow (Option) Temperature Control Kettle Temperature Range (-25 to 200)°C Oil Bath Temperature Range (-45 to 250)°C Control Method Isothermal, Constant Temperature, Scanning Temperature Resolution 1.0mK Temperature Control Precision ±0.1K Silicone Oil Circulation Speed (35 to 76)L/min Control Driver Voltage Range (0 to 50)VDC Driver Maximum Current 3.0A Heater Maximum Power 120W Atmospheric Pressure Glass Kettle (Option) 1000mL, other volumes available Reactor Volume Atmospheric Pressure Working Pressure Glass Reactor Material Medium-Pressure Glass Kettle (Option) Medium-Pressure Glass Kettle (Option) Reactor Volume 0.6MPa or 1.2MPa Working Pressure Glass Kettle Material 316L Stainless Steel or Hastelloy Kettle Lid Material 1000mL, other volumes customizable High-Pressure Metal Reactor ( (Optional) 10MPa Reactor volume 316L Stainless Steel or Hastelloy Working pressure Stirrer Reactor material 2000r/min, 3000r/min optional Stirrer Maximum speed Anchor or Paddle Maximum torque PTFE, 316L, or Hastelloy Stirrer paddle form Sampling system Stirrer paddle material Range 3100g, Accuracy 0.01g Sampling system Precision balance Medium-pressure pump: electromagnetic diaphragm pump, the maximum flow rate of 2L / h; high-pressure pump: precision piston pump, the maximum flow rate of 2.4L / h Sampling channel 3*400V/50Hz(±10%)/20A Sampling pump 7000VA Other parameters 1200mm*600mm*1850mm Power supply 600mm*700mm*1300mm Power 210kg Test area size 300kg Oil bath size Heat Flow, Power Compensation (Option), Reflow (Option) Oil bath weight Temperature Control Total machine weight (-25 to 200)°C
