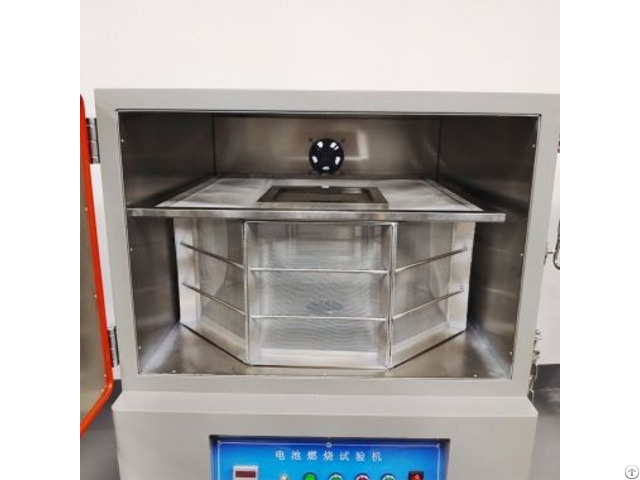

Battery Combustion Test Chamber - China

Test standard

ul 1642: 2012; ul 2054: 2012; iec 62281: 2004; un 38.3 functional features

apply to gb31241-2014 battery test standards, battery combustion jet test; using liquefied petroleum gas as fuel, bunsen burner, can set the flame application time, adjustable flame height; strictly in accordance with the specification requirements for the design of the test steel mesh, protection of the aluminum mesh, the position of the burner and the test platform; overall box double-layer structure, the setting of the test chamber lighting, explosion-proof port devices, forced rigorous safety design, double gas leakage alarm device, gas leakage can automatically cut off the gas source immediately; selected high-quality electrical components, with local and remote operation switching function; optional fire extinguisher module and video monitoring function (video monitoring function requires the customer to provide poe power supply standard for ieee802.3af/at switch).

technical parameter

power supply voltage single-phase 220vac±10% (110vac can be customized), frequency 50hz/60hz, power 0.5kw operating environment suggested ambient temperature 25±3℃, humidity 30~90rh(%), no vibration and electromagnetic interference test items flame jet test test objects button, cylindrical, flexible packaging, square lithium battery applicable standards gb31241-2014 - ul1642 - ul2054 - sj/ t 11170-1998 - etc.

combustion gases high purity liquefied petroleum gas burner bunsen burner, inner diameter of the tube mouth 9.5mm, length 100mm flame control automatic ignition, flame application time and continuation of combustion time 0~999s continuously adjustable flame height 10~75±2mm test steel mesh diameter 0.45mm, 20 mesh test aluminum mesh diameter 0.25mm, 16 mesh mounting dimensions w1020mm*d980mm*h1865mm weight approx.

357kg
