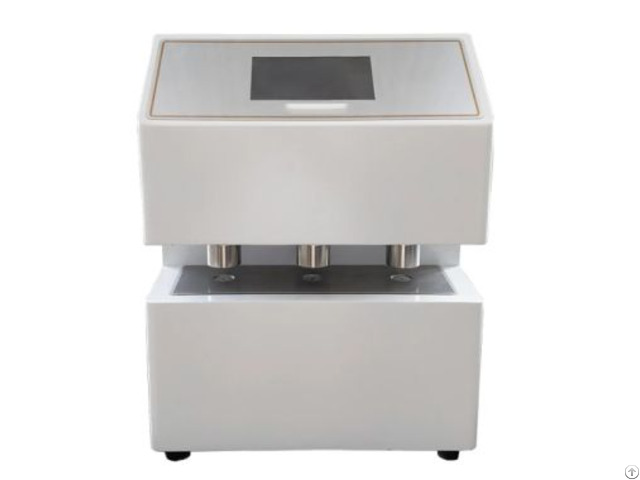

Battery Diaphragm Permeability Device - China

Meet the standard:

GB/T458 - ISO536/2 - QB/T1667 - GB/T23227 - ISO2965 - YC/T172 - GB/T12655 - S05636/3 - IS05636/5 - GB/T20042.7-2014 - GB/T36363-2018 - etc

Product Features:

Permeability Measurement Unit: Measures the time taken for a specific volume (e.g., 100ml) of gas to pass through the sample.

Sample Holder: Designed to securely hold a single sample of the battery diaphragm for testing.

Pressure Application System: Applies a precisely controlled pressure difference across the sample, with selectable pressure ranges.

High-Resolution Display: Shows test results and parameters with fine resolution.

User Interface: Allows for setting test parameters and initiating tests.

Gas Inlet: Requires connection to an external supply of clean air as the test gas.

Compact Design: Efficient use of laboratory space.

Technical parameters:

Test range: 10-15000s/100ml(standard configuration) Other ranges are optional.

Resolution: 0.1s/100ml Pressure accuracy: 0.0001kPa Number of samples: 1 Net weight: 20 kg Test gas: Clean air (user's own) Power supply: AC 220V 50Hz Overall dimensions: 370MM(L)X320MM(D)X450MM(H ) Pressure range: 5kPa(10kPa, 20kPa optional) Air source pressure: 0.3MPa1.0MPa
