Product Description

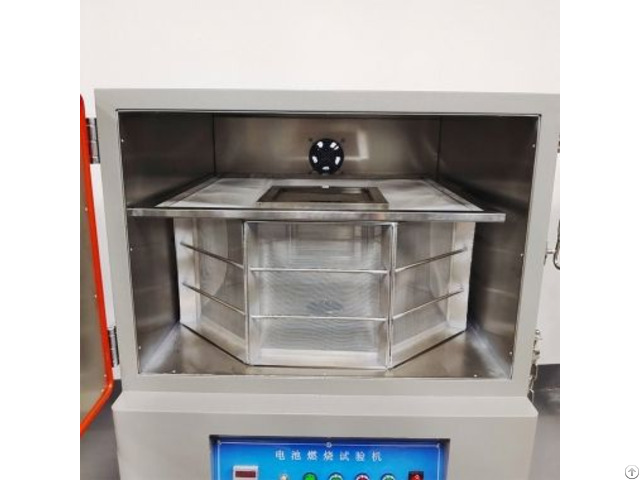

Battery combustion tester is a device that can be applied to the safety test of lithium-ion batteries, which can realize the simulation of the battery in the burning flame jet sizzling under the harsh conditions, to verify the safety performance of the battery.

TEST STANDARD

UL 1642: 2012; UL 2054: 2012; IEC 62281: 2004; UN 38.3

Technical parameter

Power supply Voltage single-phase 220VAC±10% (110VAC can be customized), frequency 50Hz/60Hz, power 0.5KW Operating environment Suggested ambient temperature 25±3℃, humidity 30~90RH(%), no vibration and electromagnetic interference Test items Flame jet test Test objects Button, cylindrical, flexible packaging, square lithium battery Applicable standards GB31241-2014 - UL1642 - UL2054 - SJ/ T 11170-1998 - etc.

Combustion gases High purity liquefied petroleum gas Burner Bunsen burner, inner diameter of the tube mouth 9.5mm, length 100mm Flame control Automatic ignition, flame application time and continuation of combustion time 0~999s continuously adjustable Flame height 10~75±2mm Test steel mesh Diameter 0.45mm, 20 mesh Test aluminum mesh Diameter 0.25mm, 16 mesh Mounting dimensions W1020mm*D980mm*H1865mm
