Battery Powered Rail Drilling Machine For Track Maintenance - China

price: 2880.00 Dollar US$

Battery Powered Rail Drilling Machine For Track Maintenance

Products Photos Catalog Battery Powered Rail Photos Catalog

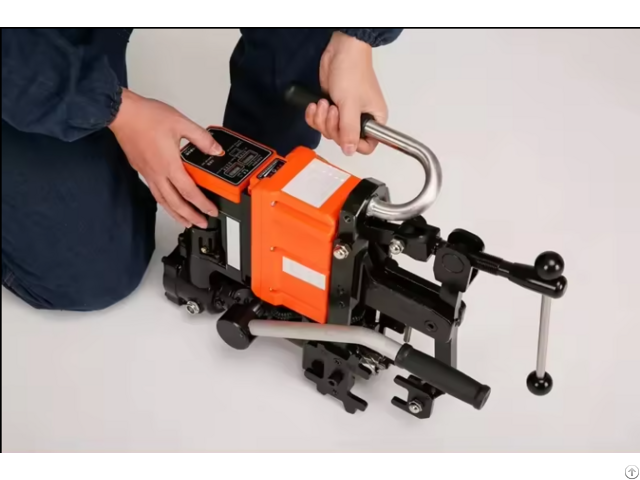

LJ-LDG1901 Electric Rail Drilling Machine

36V Intelligent lithium battery rail drilling machine

*Fully waterproof design, support rainy day work

*Clean energy, green and pollution-free

*Intelligent control system, keeps drilling at a constant speed, and displays the number of holes with remaining power

*Super endurance capability : Drilling more than 40 holes each charge (31 mm diameter hole)

Drilling more than 110 holes each charge (13.5 mm diameter hole)

Drilling more than 180 holes each charge (9.8 mm diameter hole)

*Ultra-light weight, only 15.9 kg including battery

*Overload reminder and protection design

*Quick-change design of the drill bit, do not need any additional tools

Specification

Model

LJ-LDG1901

Type

Electric Rail Drilling Machine

Material

Alumilium

Dimensions (L x W x H) (mm)

515*148*390mm

Rotation rate

220-300rpm

Power of motor

2.8 KW

Drill bits range

Φ9.8mm-Φ32mm

Illumination

LED lights

Drill bit clamping

quick change (do not need any additional tools)

Weight

15.9 Kg (including battery pack ) 13.4 Kg (excluding battery pack)

Normal operating temperature requirements

minus 30°C to 45°C

Battery pack voltage

36V

Battery pack capacity

12Ah

Drilling time

<15 S ( 31 mm Diameter)

Waterproof rating of the whole machine

IP 45 ( safe to use in the rainy days)
