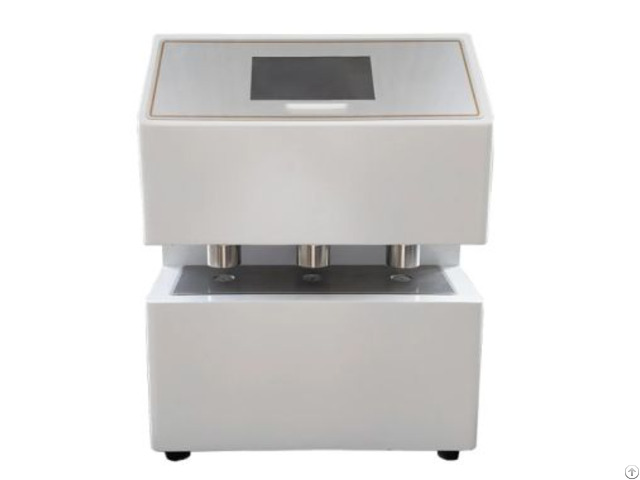

Battery Separator Permeability Measurement Device - China

Meet the standard:

GB/T458 - ISO536/2 - QB/T1667 - GB/T23227 - ISO2965 - YC/T172 - GB/T12655 - S05636/3 - IS05636/5 - GB/T20042.7-2014 - GB/T36363-2018 - etc Product Advantages:

Accurately measures the gas permeability of battery diaphragms and separators.

Complies with highly relevant battery-specific standards (GB/T20042.7-2014 - GB/T36363-2018).

Offers a wide test range (10-15000 s/100ml) with options for other ranges, accommodating various materials.

Provides high resolution (0.1 s/100ml) and exceptional pressure accuracy (0.0001 kPa) for reliable results.

Supports multiple pressure ranges (5kPa standard, 10kPa, 20kPa optional) for versatile testing.

Designed for ease of use and requires only clean air as a test gas.

Technical parameters:

Test range: 10-15000s/100ml(standard configuration) Other ranges are optional.

Resolution: 0.1s/100ml Pressure accuracy: 0.0001kPa Number of samples: 1 Net weight: 20 kg Test gas: Clean air (user's own) Power supply: AC 220V 50Hz Overall dimensions: 370MM(L)X320MM(D)X450MM(H ) Pressure range: 5kPa(10kPa, 20kPa optional) Air source pressure: 0.3MPa1.0MPa
