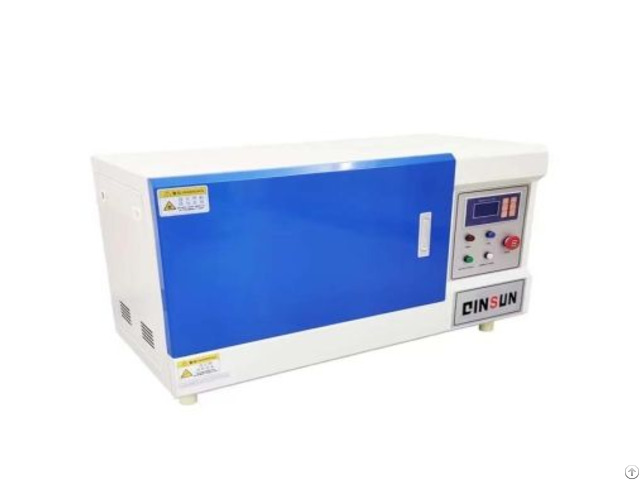

Bench Uv Accelerated Aging Chamber - China

Main Performance：

The Bench-top UV Light Accelerated Aging Test Chamber uses three 20W fluorescent ultraviolet lamps with a wavelength of 313nm as the experimental light source.

During the test, basic parameters such as total light time, temperature in the box, and spray time can be set to simulate the nature of the outside world.

The damage caused by the environment is used to evaluate the weather resistance of the model.

The all-stainless steel sandwich liner design will never rust and leak water, while effectively preventing water vapor in the working room from penetrating into the electrical part and damaging the electronic components.

Built-in water level switch, the machine will alarm and stop automatically when the water level is low.

Use the ultraviolet lamp tube produced by a professional company, the irradiation energy is high: the new lamp tube can reach 0.9W/m2 - The touch screen man-machine interface directly sets various parameters required for the test, and it is convenient to check the parameter running status during the test at any time.

Standards：

ASTM D4587: "Conducting Fluorescent UV Condensation Exposure Tests for Paints and Related Coatings" ASTM D5894: "Painted Metals" ASTM G154: "Standard for Fluorescent UV/Water Exposure of Non-Metallic Materials" ASTM D4329: "Standard for Fluorescent UV/Water Exposure of Plastics" SAE J2020: "Accelerated Exposure Standard for Automotive Exterior Materials" ISO 11507: "Artificial Weathering Exposure of Paints and Varnishes Coatings Exposure to Fluorescent Ultraviolet Light and Water" ISO EN 4892-3: "Plastics.

Methods of Exposure to Laboratory Light Sources.

Part 3: UV Fluorescent Lamps" GB/T 14522: "Artificial Climate Accelerated Test Method for Plastics, Coatings, and Rubber Materials for Machinery Industry Products" GB/T 23983: "Determination of Yellowing Resistance of Wood Coatings" GB/T 23987: "Artificial Weathering Exposure of Paints and Varnishes Coatings Exposure to Fluorescent Ultraviolet Light and Water" GB/T 16422.3: "Exposure Method of Plastic Laboratory Light Source Test: Part 3: Fluorescent Ultraviolet Lamp" Technical Parameters

No.

Function Parameter

1 Lamp model UVA: 340nm or UVB: 313nm (Normal Use 1500H)

2 UV fluorescent lamps Quantity 3

3 Lamp irradiation energy 0.7W/m²

4 Sample placement Horizontal arrangement on six sides

5 Sample capacity 18 pieces, (70×150mm)

6 The closest distance from the tube wall to the sample 50 mm

7 Sample rotation speed 3.7 c.p.m.

8 Temperature setting range RT+5～65°C

9 Inlet pressure 2.8-5.5 bar

10 Influent water purity The PH of water is between 6.0 and 8.0 - the conductivity is less than 5μm/cm, and the solids content is less than 1ppm

11 Water consumption Condensation: 7L/day; Spray: 4L/min

12 Dimensions (W×H×D) 940×630×500mm

13 Weight 70kg

14 Voltage 220V, 50Hz, maximum current 6A (110V is also available)

Performance features:

Cost-Effective Lamps: Domestic UVA or UVB lamps are priced at less than 1/5 of the cost.

Spray and Temperature Function: The chamber includes spray and temperature control functions.

Test Standards Compliance: The chamber complies with various domestic and international test standards, with the ability to set different test procedures as needed.

Real-Time Data Acquisition: Test data is automatically generated in Excel format, recorded, and saved.

It can be exported via a USB drive, enabling truly unattended operation.

Remote Monitoring: The chamber features a standard TCP/IP Ethernet interface, allowing users to remotely monitor the machine's status through a network.

Touch Screen Operation: The touch screen provides an easy-to-use, user-friendly interface, allowing users to view any parameter during the test at any time.

Precision Temperature Control: The chamber is equipped with a high-precision Pt 100 temperature sensor and automatic temperature control for accurate results.
