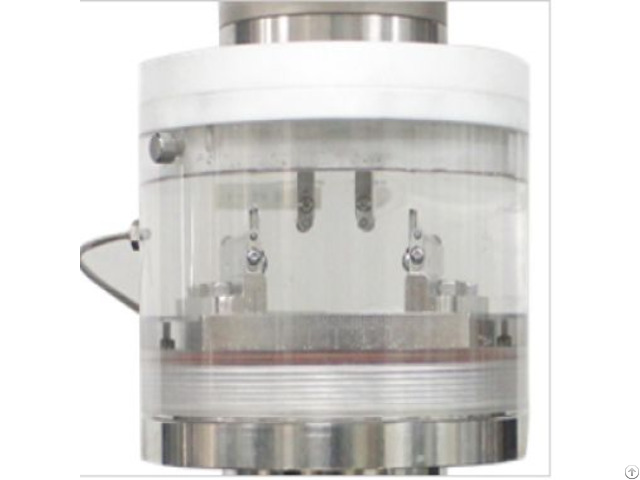

Biodegradable Bone Fixation Implant Durability Tester - China

Standard

YY/T 0509-2009 (China): Specifies mechanical testing protocols for orthopedic plates/screws made of hydrolyzable polymers, including axial pull-out, torsion, and 4-point bending tests.

ASTM F2502-17 (International): Defines methodologies for evaluating the structural integrity of bioabsorbable fixation devices under physiological loading.

ISO 13779-4: Additional compliance for in vitro degradation testing of resorbable materials.

Product Advantages

Multi-Modal Testing: Single platform for axial pull-out, torsion, and 4-point bending tests.

Biodegradation Simulation: 37±1°C pH-controlled water bath with real-time conductivity monitoring.

High-Resolution Sensors: 0.001 N force/0.001 Nm torque resolution for fragile polymer testing.

Accessories

Bioabsorbable Fixture Kit: Self-centering plate clamps (20–100 mm compatibility) Screw torque adapters (2.0–4.5 mm diameter) pH-Controlled Water Bath: 15L capacity with recirculating pump Corrosion-resistant titanium interior BioTest Pro Software:

Automated degradation curve generation and strength retention analysis 21 CFR Part 11-compliant audit trail with blockchain timestamping Remote monitoring via iOS/Android app Operator Kit:

Calibrated torque wrench set (0.1–1 Nm) Implant alignment jigs (ASTM F2502 compliant) Calibration Bundle:

NIST-traceable force/torque calibration weights pH electrode calibration solution Safety Kit:

Chemical-resistant gloves Acoustic enclosure with 25 dB noise reduction Technical Parameters

Parameter Specification

Max.

Axial Force ±5.000 N (0.001 N resolution)

Max.

Torsional Moment ±1 Nm (0.001 Nm resolution)

Bending Span 40–120 mm (1 mm increments)

pH Control Range 5.5–8.0 (0.1 resolution)

Temperature Control 37±1°C (PT1000 sensor)

Data Sampling Rate 10 kHz (synchronized across 8 channels)

Power Requirements 220V/110V ±10%, 50/60Hz, 1.200W

Dimensions (W×D×H) 500 × 450 × 750 mm

Weight 75 kg (net) / 90 kg (with bath)

Noise Level <50 dB (A-weighted)
