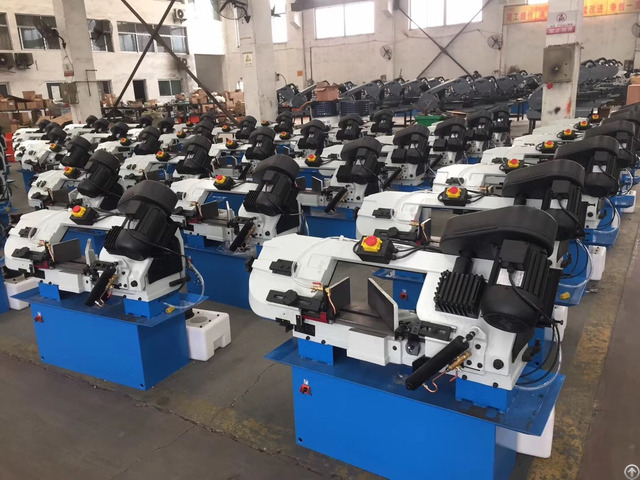

Bs 712n Chinese Metal Cutting Band Sawing Machine For Sale - China

The main performance characteristics： 1 - The maximum processing capacity is 7", 2 - The belt drive has fourth gear cutting speed (indicated by the letter N);

3 - The belt drive has third th gear cutting speed (indicated by the letter G);

4 - The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);

5 - With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);

6 - Can the vertical horizontal dual-use ;

7 - The fall speed of the saw bow is controlled by the hydraulic cylinder;

8 - The machinery with base a roller, can be free to move ;

9 - With stop device (After the machine sawing and cutting will automatically stop );

10 - With a open the door power-off protection device (rear protection cover open when the machine will automatically power off), 11 - The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece; 12 - Block device (fixed sawing length);

Application：

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Product main technical parameters:

Main technical parameters BS-712N BS-712R

Machining capacity @90°Round steel 178mm(7″) 178mm(7″) @90°Square steel 178×305mm(7″×12″) 178×210mm(7″×8.25″) @45°Round steel 127mm(5″) 127mm(5″) @45°Square steel 120×125mm(4.75″×4.88â €³) 85×140mm(3.33″×5.5″ )

Saw cutting speeds @ 50HZ 27, 41, 59, 78MPM 22.34.49.64MPM @ 60HZ 22, 34, 49, 64MPM 27.41.59.78MPM

Saw blade size 20×0.9×2362mm 19×0.9×2362mm

Motor power 750W1HP(3PH), 1.1Kw1.5HP(1PH)

Drive Gear V-belt

Package size 125×45×115cm 129×73×115cm

NW/GW 145/178kg 170/192kg
