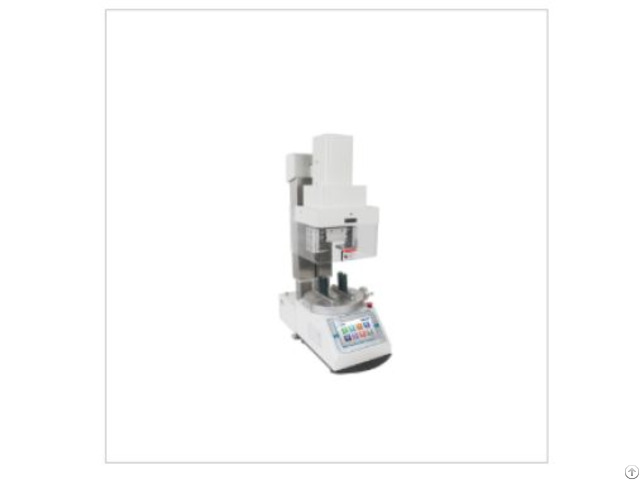

Cap Torque Chamber - China

Applications:

Basic Applications： Bottle Packages Application and removal torque test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles Flexible Tube Packages Application and removal torque test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish Extended Applications： Screws Application and removal torque test of the screws Vacuum Flasks and Vacuum Cups Application and removal torque test of the caps of vacuum flasks and vacuum cups Features Include：

Moveable 1.25″ (31 mm) length posts accommodate a wide range of sample shapes and sizes Available extended post lengths and other gripping options USB, RS-232 - Mitutoyo, and analog outputs Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes First / second peak detection for slip and breakaway torques in tamper evident closures 1.000-point data memory with statistics and outputs Password protection prevents unauthorized changes Programmable set point indicators and outputs for pass/ fail determination High-speed 7.000 Hz sampling rate accurately captures peak torque values Configurable audio alarms and key tones 5 selectable units of measurement Lite data collection software included Test Standard：

ASTM D2063 - ASTM D3198 - ASTM D3474 - BB/T 0025 - BB/T 0034 - GB/T 17876 Technical Specifications：

Load Cell Capacity：5 Nm (Standard)、20 Nm (Optional)、40 Nm (Optional)) Accuracy：Indicated Value ±0.5%(10%-100% of Load cell capacity、±0.05%FS (0%-10% of Load cell capacity) Resolution：0.0001 Nm Body Clamp Range：Φ5 mm ~ Φ170 mm Cap Clamp Range：Φ10 mm ~ Φ80 mm Bottle Height：20 mm ~ 400 mm Specimen Clamping and Turning Way：Pneumatic Maximum Auto Removal / Application Torque：2 Nm (customization available for other specs) Gas Supply：Air (Not in supply scope) Gas Supply Pressure：0.7 Mpa (101.5psi) Statistical Analysis Allowance：0 ~ 999 Instrument Dimension：550 mm (L) x 365 mm (W) x 1150 mm (H) Power Supply：220VAC±10% 50Hz / 120VAC±10% 60Hz Net Weight：39 kg
