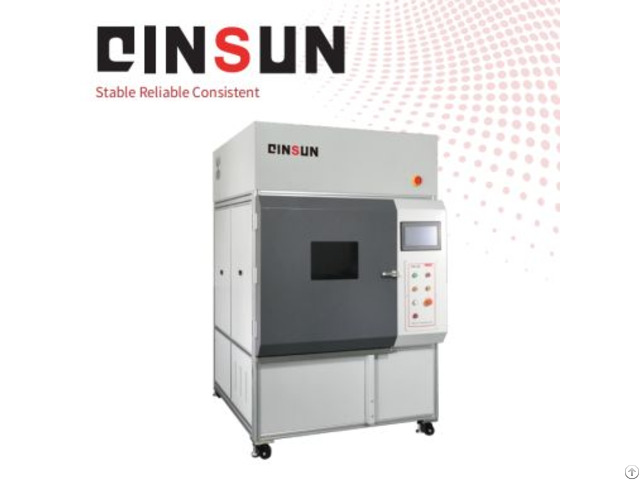

Carbon Arc Aging Test Device - China

Applications

Material Science: Accelerated aging tests for polymers, coatings, and textiles.

Automotive Industry: Validation of exterior components (e.g., bumpers, trim) against UV degradation.

Construction Sector: Weatherability testing for roofing materials, sealants, and facades.

Quality Control: R&D and batch testing for paint, ink, and packaging durability.

Standard

Complies with JIS A1415 - B7753 - D0205 - G3312 - H86885 - K2246 - K5400 - Z9117 - ISO 4892-1 - ASTM G23 - AATCC, and NCCA standards, ensuring global compliance for accelerated weathering tests of materials exposed to sunlight and moisture.

Product Advantages Accelerated Aging Simulation: Mimics years of natural sunlight/rain exposure in weeks, reducing R&D timelines for material durability testing.

Dual-Environment Testing: Combines high-energy carbon arc light (255 W/m²) with programmable water spray (0.08–0.13 MPa) for realistic outdoor condition replication.

Precision Irradiance Control: Maintains stable arc voltage (50V ±2V) and current (60A ±2A) via PLC-driven feedback systems, ensuring test repeatability.

High-Capacity Throughput: Accommodates up to 76 samples (150×70 mm) on a rotating 960 mm diameter frame, optimizing lab efficiency.

Industrial-Grade Durability: Imported carbon rods and corrosion-resistant chamber (375 kg) withstand continuous 78-hour testing cycles.

Product Features

Advanced Light Source: 4 pairs of carbon electrodes generate discharge arcs, filtered to replicate sunlight’s UV-visible spectrum.

Adjustable irradiance (255 W/m²) and blackboard temperature (63°C/83°C ±3°C) for diverse test protocols.

Environmental Simulation: Programmable humidity (50% RH ±5%) and 16°C ±5°C water spray for condensation/rain effects.

480 mm arc-to-sample distance ensures uniform exposure across all 76 test positions.

Smart Control System: 7-inch color LCD touchscreen with ICON-based interface for intuitive test setup (e.g., ASTM G23 cycles).

Data logging of irradiance, temperature, and cycle duration for ISO/JIS compliance reporting.

Safety & Maintenance: Multi-level protection: Overcurrent, overvoltage, leakage, and overtemperature alarms.

Self-diagnostic system alerts for carbon rod replacement and water quality issues.

Technical Parameters

Parameter Specification

Control Mode Automatic (PLC + HMI)

Carbon Arc Duration 78 hours (continuous)

Discharge Voltage 50 V ±2 V

Discharge Current 60 A ±2 A

Irradiance 255 W/m² (adjustable)

Blackboard Temperature 63°C ±3°C or 83°C ±3°C

Water Spray 0.08–0.13 MPa; 2100 mL ±100 mL/min (16°C ±5°C)

Chamber Humidity 50% RH ±5%

Sample Capacity 76 × 150×70 mm specimens

Rotation Speed 1 RPM (uniform exposure)

Power Supply 380 VAC ±10%, 50 Hz, 15 kVA

Dimensions 1650 × 1500 × 2200 mm (L×W×H)

Weight 375 kg

Safety Certifications CE, UL, and RoHS compliant
