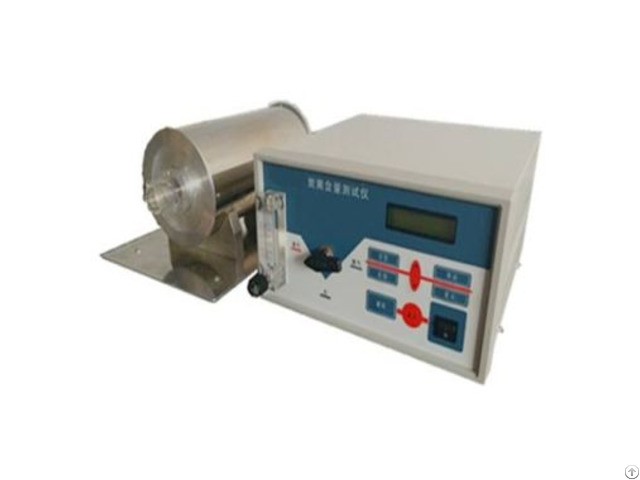

Carbon Black Content Test Chamber - China

Standards

GB/T 2951.41-2008: Test methods for cable and optical fiber insulating/sheathing materials.

GB/T 3515-2005: Pyrolysis method for carbon black content in rubber.

GB/T 13021-1991: Thermogravimetric analysis (TGA) for carbon black in polyethylene pipes/fittings.

ISO 6964: International standard for carbon black determination in polymers.

IEC 60811-4-1: Electrotechnical Commission standard for electrical cable testing.

JTG E50 T1165: Transportation industry specification for geosynthetics.

Product Advantages

Dual-Method Precision: Combines pyrolysis (high-temperature cracking) and thermogravimetric analysis (TGA) for accurate carbon black quantification in polymers.

Universal Compliance: Adheres to ISO, GB, IEC, and industry-specific standards, enabling global market access.

User-Centric Design: Intuitive touchscreen interface with preset protocols for cables, rubber, and plastics.

Rapid Testing: High-efficiency heating elements reduce test cycles by 30% compared to traditional methods.

Safety First: CE-certified design with over-temperature protection, gas leak detection, and automatic shutoff.

Product Features

Hybrid Testing System: Integrates a high-temperature and precision TGA balance (0.0001g readability).

Wide Material Compatibility: Suitable for cables, rubber compounds, polyethylene pipes, geosynthetics, and masterbatches.

Automated Workflow: Programmable heating ramps, gas purge cycles, and data logging for unattended operation.

Advanced Data Analytics: Real-time TGA curves, carbon black percentage calculation, and exportable reports (PDF/Excel).

Modular Design: Quick-release furnace and interchangeable crucibles for easy maintenance.

Technical Parameters

Parameter Specification

Temperature Range Pyrolysis: 500°C–1000°C

Temperature Accuracy ±1°C

Heating Rate 1–50°C/min (adjustable)

Test Time 10–60 min (auto-adjustable)

Sample Capacity 5–10g (crucible size: Φ40mm x 20mm)

Display Resolution 0.01% (carbon black content)

Gas Supply Nitrogen/oxygen (99.99% purity required)

Power Supply AC 220V ±10%, 50/60Hz, 2000W

Dimensions (WxDxH) 550mm x 450mm x 600mm

Weight 75kg

Accessories Main Unit: Dual-chamber tester with touchscreen controller.

Crucible Set: 10x high-purity alumina crucibles (reusable).

Calibration Kit: Standard carbon black reference samples.

Software: PC-compatible data analysis suite (USB included).

Safety Kit: Gas leak detector, heat-resistant gloves, and eyewear.

Documentation: Multilingual user manual, warranty card, and compliance certificates.
