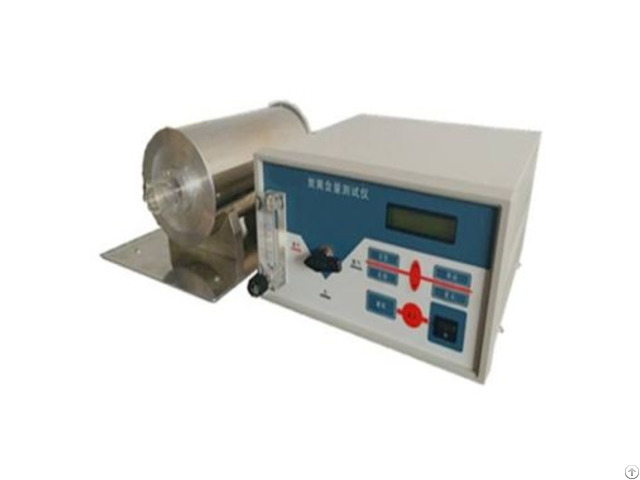

Carbon Black Content Tester - China

Standard

GB 13021-1991: Determination of carbon black content in polyethylene compounds.

GB/T 2951.41-2008: Test method for carbon black and ash content in cables and wires.

International Adaptability: Configurable for ASTM D1603 and ISO 6964 equivalency upon request.

Product Features

Pyrolysis System: Split-Tube Furnace: Rapid heating (0–1.000°C in 20 minutes) with silicone carbide elements.

NiCr-Ni Thermocouple: ±0.5°C accuracy across 300–1.000°C range.

Gas Control: Mass flow controllers for nitrogen (1–5 L/min) and air (0.5–2 L/min).

Built-in leak detector with audible/visual alerts.

Weighing Module: Integrated analytical balance (0.01mg resolution) with anti-vibration table.

Auto-tare function for crucibles and samples.

Data Management: 100-test memory with date/time stamping.

USB/RS-232 ports for PC connectivity and LIMS integration.

Safety Suite: Emergency off button with E-Stop loop monitoring.

Fume extraction port for lab ventilation systems.

Technical Parameters

Specification Details

Temperature Range 300°C to 1.000°C (max.

operating temp.

)

Temperature Accuracy ±0.5°C (±0.1°C with calibration kit)

Heating Rate 0–50°C/min (adjustable)

Gas Purity 99.99% N₂ (inert) / Ambient air (combustion)

Sample Capacity 1–5 samples per run (10g max.

per sample)

Power Supply 220V/50Hz (110V/60Hz available)

Dimensions (W×D×H) 500mm × 400mm × 450mm

Weight 45 kg (net)
