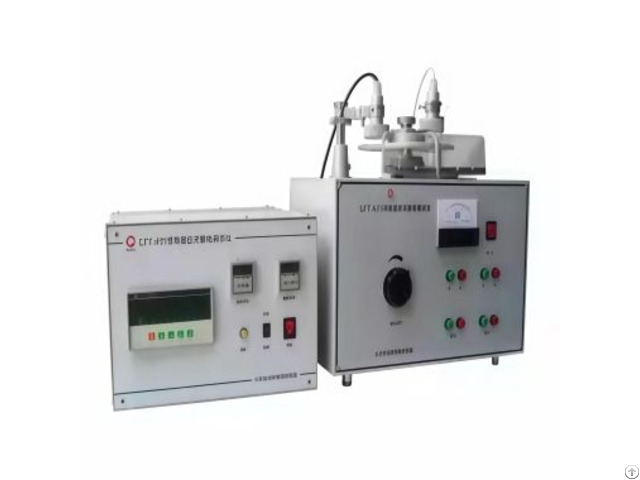

Carpet Static Electricity Chamber - China

Applicable Standards

GB/T 18044 - 2008 Carpet - Evaluation method for electrostatic behavior - Walking test BS ISO 6356 Floor coverings - Assessment of electrostatic properties - Walking test Main Applications

The carpet static electricity tester (walking test) is mainly used for the anti - static testing of carpets and other floor covering materials.

It can be used by carpet manufacturing enterprises, carpet fiber production enterprises, textile (carpet) inspection institutions, the aviation and automotive interior industries, as well as scientific research institutions for quality inspection and technical evaluation.

Technical Parameters

1 - Grounded metal base plate: (100×200) cm, made of 1mm - thick aluminum plate.

2 - Rubber mat: (220×120) cm, with a thickness of (4.5±0.5) mm.

3 - Input resistance of the voltmeter and hand - held electrode system: ≥10¹⁴Ω.

4 - Input capacitance of the hand - held electrode: ≤20pF.

5 - Measuring voltage range: (-20～+20) kV, with an accuracy of 0.1kV.

6 - Test duration: 60s.

7 - Atmospheric conditions for adjustment and testing: Temperature: (23±1) °C, Humidity: (25±3) %RH.

8 - Standard carpets should be purchased by the user.
