China Coal Widely Ued In Factory Ady6 Negative Pressure Oxygen Respirator - China

solated negative pressure oxygen breathing apparatus, oxygen breathing apparatus

Product Introduction

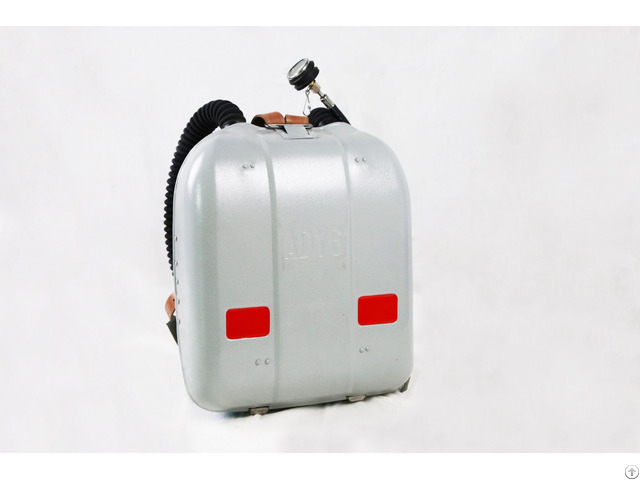

ADY6 negative pressure oxygen respirator is a kind of personal respiratory protection device that uses compressed oxygen as air source, it is isolated and regenerative.

Respiratory isolate with the outside world when the user breathing, instrument and human respiratory system form the inner loop.

High pressure gas cylinder provides oxygen gas.

Breathing gas was storage by airbag.

It has high safety factor for human respiratory protection.

Mainly used for the poisonous and harmful, oxygen and other disasters (normal atmospheric pressure) in the environment to implement rescue and relief.

Features & Benefits

• Masks to wear comfortable, clear vision, no fog, no frost

• Stable and reliable performance, simple operation.

• Manual drainage device, advanced exhaust function

• Breathing tube for large cross-section of high quality rubber hose, texture soft, with the head swinging at ease.

Applications

• Coal Mine

• Chemical Industry

• Metallurgy

• Petroleum

• Water Works

• Underground Construction

• Lab



Main Parameters



MODEL: ADY6

Oxygen supply ration: 1.4±0.1 L/min

Automatic oxygen supply ration: ≥100 L/min

Manual oxygen supply ration: ≥80 L/min

Automatic exhaust pressure: -98~-294 pa

Inhaling concentrations of carbon dioxide: ≤2%

Inhaling oxygen concentration: ≥25%

Automatic exhaust pressure: 98-294Pa

Service time: 4 hours (medium labor intensity0

Oxygen bottle rated working pressure: 20 MPa

Oxygen bottle volume: 2 L

Oxygen storage: 400 L

Calcium hydroxide: ≥1 kg

Size: 455*375*165mm

Weight: ≤12.8kg (without calcium hydroxide, oxygen)
