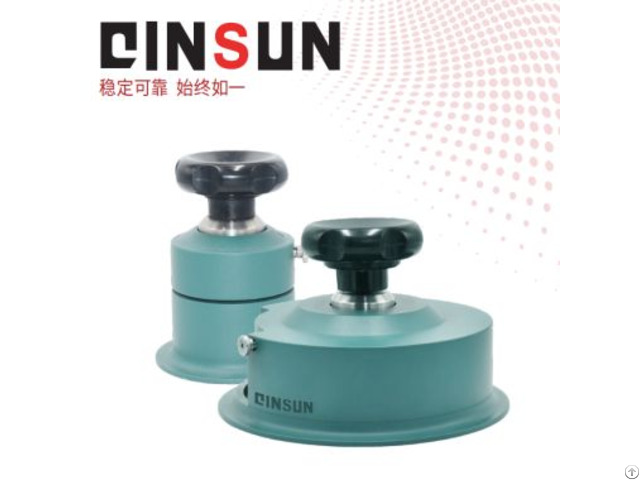

Circular Sample Cutter Tester - China

Application

Textile Industry: Cutting wool, cotton, chemical fiber, and knitted fabric samples for quality inspection.

Packaging & Papermaking: Sampling materials for strength and durability testing.

Research & Testing Labs: Preparing standardized specimens for physical property analysis.

Quality Control: Ensuring compliance with international material standards.

Standard

ISO 3801: Textiles – Determination of Fabric Mass per Unit Area (Sampling Method) ASTM D3776: Standard Test Methods for Mass Per Unit Area of Fabric GB/T 4669: Textiles – Sampling Methods for Physical Performance Testing Product Advantages

Precision Sampling: Cuts perfect circular specimens (11.3 cm² area) for reliable test results.

Safety First: Locking mechanism prevents blade exposure after use.

Portable Design: Lightweight (1 kg) and manual operation suit lab/field use.

Durable Construction: Imported high-carbon steel blade ensures long-term sharpness.

Versatile Use: Handles materials up to 5 mm thick, including coated fabrics.

Cost-Effective: No power required, reducing operational complexity.

Product Features

Integrated Design: Combines outer cover, handle, blade holder, and rotating base for stability.

Manual Operation: Rotate corrugated handwheel 90°–180° to apply pressure and cut samples.

Safety Lock: Prevents accidental blade exposure when not in use.

Adjustable Thickness: Accommodates samples up to 5 mm thick.

Easy Maintenance: Blade replacement requires no special tools.

Non-Slip Base: Rubber pad ensures sample stability during cutting.

Technical Parameters

Parameter Specification

Blade Type Imported High-Carbon Steel

Test Mode Manual Operation

Sampling Area 11.3 cm² (Diameter: ~38 mm)

Sample Thickness Up to 5 mm

Weight 1 kg

Power Supply No Power Required

Dimensions (L×W×H) 80 mm × 80 mm × 120 mm

Rotation Angle 90°–180° (Adjustable)

Safety Lock Yes (Prevents Blade Exposure)
