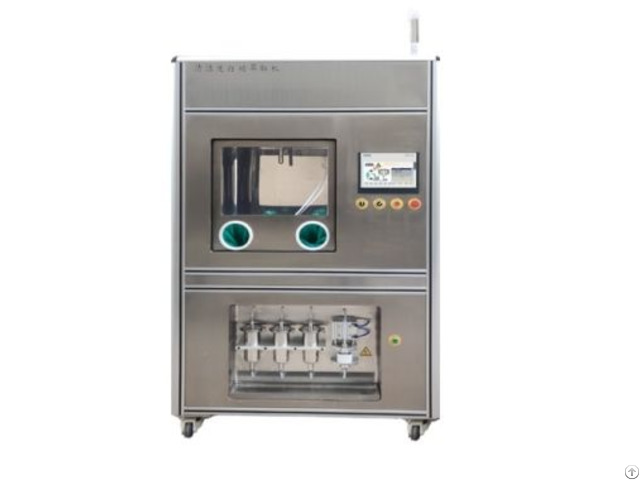

Cleanliness Automatic Extractor Tester - China

Component Cleanliness Cabinet equipped with cleaning modes such as pressure jet cleaning, perfusion cleaning, spray cleaning, etc., the cleaning agent's on-line filtration and membrane making, circulating fine filtration and recovery functions realize the synchronous cleaning of parts and the filtration and recovery of particulate pollutants, which can collect the particulate pollutants on the surface of parts to the surface of filter membrane in time, and the filter membrane samples can be obtained after cleaning the parts, thus reducing the retention time of particulate pollutants in the cleaning agent; It subverts the traditional manual cleaning and testing method, standardizes the cleanliness testing process and improves the testing efficiency.

Component Cleanliness Cabinet’s working status is displayed in real time, and the cleaning pressure and flow are adjustable.

With different cleaning nozzles, it can quickly and easily clean the inner cavity channels, blind holes, and pollutants on the overall surface of the parts.

It is widely used in the cleanliness detection of various auto parts.

Particulate matter extraction and sample preparation.

Meet ISO16232-2007 - VDA19.1 - GB/T3821-2005 and other technical cleanliness testing standards and enterprise-defined standards, and meet the extraction and sample preparation of surface particulate matter from major auto parts such as Tesla, Volkswagen, GM, Technical parameters:

Pressure cleaning chamber size (mm) : 700*600*700 Machine size (mm) : 1250*900*2150 Storage tank capacity (L) : 25 Full color touch screen: Siemens Three-stage cycle filtration: 0.22um three-stage series cycle filtration Three-stage filter membrane: one-click automatic clamping, specifications 847mm, 850mm, according to customer custom Automatic lifting door: one key automatic uniform speed lifting Special high cleaning pump: special high pressure pump Cleaning room material: 8K mirror 304 stainless steel Programmable controller: digital programmable controller Spray cleaning method: spray pen/spray gun Cleaning collection pipe: The pipe adopts food-grade internal and external polishing sus304 one-time forming pipe
