Close Circular Fluidizing Drying Machine - China

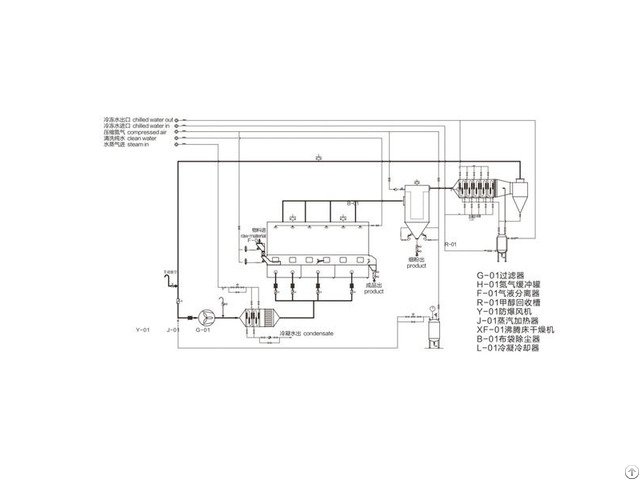

Principle of work

◆ With nitrogen as heat conduction medium, the equipment can dry materials in pharmaceutical, chemical, biochemical, biological and other technical fields’ materials containing organic solvents, as well as recover solvents, with safety, high efficiency and low energy consumption.

◆ The air in dryer is heated by heat exchanger under the circulation of blower, and enters the fluidizing bed.

Raw materials and hot air have full contact and heat exchange.

After the solvent(methanol, acetone, the alcohol etc.

) in materials is evaporated, under circulating gas driving, fine powder will be collected by nitrogen back blowing bag dust collector, the evaporated vapour enters condenser and cool down by cold medium to recover solvent and separate gas.

The separated gas is sent to heater again by fan, it works full cycle material.

Applications

● Mainly used for solvent.

solvent-containin g materials drying and solvent recovering.

◆Wet particles and material drying from swinging particles and wet high speed mixing granulation

◆Drying for medicine, food, chemical and other fields containing solvent wet granules and powdery particles.
