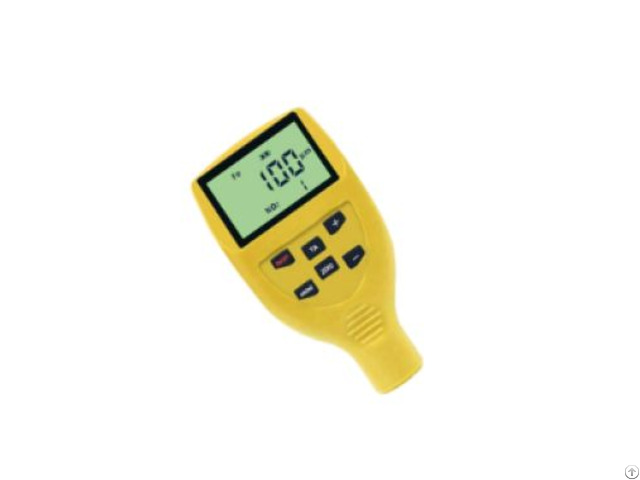

Coating Thickness Testing Machine - China

Standard

Coating Thickness Gauge complies with international standards including ASTM B499 - ASTM D1400 - ISO 2178 - ISO 2360 - and GB/T 4956 - ensuring reliable measurements for industrial and laboratory applications.

Designed for non-destructive testing of non-magnetic coatings on ferromagnetic substrates (e.g., steel, iron), it meets the demands of automotive, manufacturing, and QC inspection sectors.

Product Advantages

Zero-Point Calibration

Simplifies setup with instant zero adjustment, eliminating baseline errors for consistent accuracy.

Vivid IPS Display

1.14" full-color IPS screen with intuitive touch controls for effortless navigation, even under bright lighting.

Curved Surface Mastery

Measures convex radii ≥5mm and concave radii ≥10mm, ideal for pipes, automotive panels, and contoured parts.

High-Sensitivity Probe

Proprietary sensor technology delivers rapid response (1μm resolution) and ±(3%H+1)μm precision.

Ultra-Portable Design

Compact 65g build with wrist strap for single-handed operation in tight spaces or field environments.

Extended Battery Life

10.000 measurements per charge (8+ hours) for uninterrupted workflows.

Ample Data Storage

100-result memory with USB-C connectivity for quick data transfer to PCs/tablets.

Dual-Unit Flexibility

Toggle between μm and mil units for global standard compliance.

Rugged Durability

Operates in 0–40°C temperatures and withstands harsh industrial environments.

Cost-Effective Precision

Affordable entry-level pricing without compromising accuracy, backed by 3nh’s proprietary technology.

Technical Parameters

Specification Details

Model STDYT5100

Base Material Ferromagnetic (Fe-base)

Probe Type Integrated single-positioning

Resolution 1μm (0.04 mil)

Measurement Range 0–1250μm (0–49.2 mil)

Accuracy ±(3%H + 1)μm

Display 1.14" IPS full-color TFT

Interface USB-C (charging/data)

Storage 100 measurements

Battery 10.000 scans per charge

Dimensions 107 × 50 × 20mm

Weight 65g (including wrist strap)

Operating Temp.

0–40°C (32–104°F)

Storage Temp.

-10–50°C (14–122°F)

Min.

Curvature Convex: 5mm / Concave: 10mm

Min.

Substrate Size 10 × 10mm

Units μm / mil (switchable)

Accessories

Iron Calibration Substrate Wrist Strap & Microfiber Cleaning Cloth USB-C Charging Cable User Manual & Calibration Certificate Portable Printer, 5V-2A Power Adapter, Calibration Foils, Replacement Probe Tips
