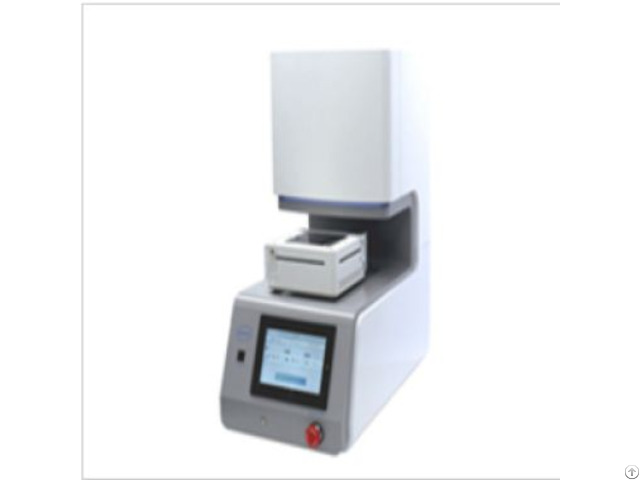

Contact Coolness Tester Std Qm - China

The sensation of coldness or warmth when skin touches an object is referred to as the "coldness and warmth feeling".

The feeling of coldness or warmth will vary depending on the amount of heat transferred from the skin to the object.

This device measures that feeling automatically by evaluating the "qmax" value (peak heat flux).

Test standard:

JIS L 1927 Textiles-Measurement method of cool touch feeling property GB/T 35263-2017 Textiles-Testing and evaluation for cool sensation at contact instant CNS15687 - L3272 Method of test for the instantaneous cool sensation fabrics Features

A design that mimics the sensation of actually touching an object The load and contact area of the heat plate that contacts the target sample are designed to simulate the feeling you experience when touching an object.

This technology allows a maximum heat transfer rate that is closer to human sensation can be measured.

Up to 10 consecutive automatic measurements Automatic measurements can be performed up to 10 consecutive times.

The automation has also improved the accuracy of the measurement values.

Space saving by build-in thermo cool Space saving is realized by built-in thermo cool that keeps the temperature of measuring sample constant.

Easy operation with touch panel All measuring operation with touch panel.

Measurement condition can be set up easily.

Specification

Parameters Data

Dimensions (W × D × H) *approx.

Measuring unit: 330 × 620 × 664 mm

Weight *approx.

Measuring unit: 42 kg

Power supply, Frequency 100 to 240VAC, 50/60Hz

Interface PC (optional) *1

OS Windows 7/8/8.1/10

Sample size 180 × 180 mm (standard)

Thickness: 25 mm (or less) *1 PC is not included.

We are able to prepare for PC with an appropriate specification.
