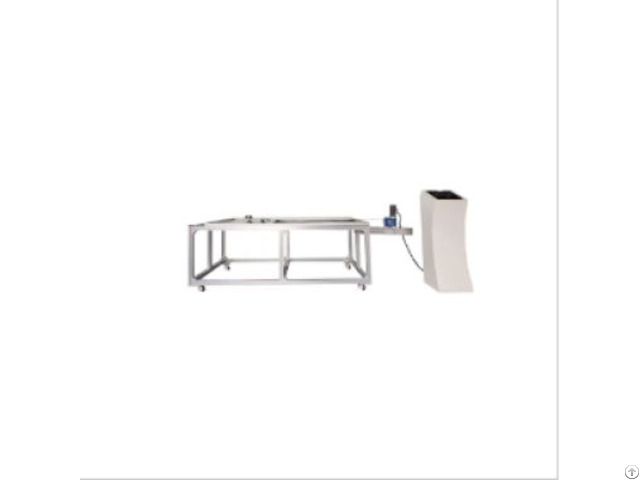

Cut Susceptibility Tester - China

Standard

IEC 61730-2: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing UL 1703: Flat-Plate Photovoltaic Modules and Panels CE Certification (Conformité Européenne) Product Advantages

IEC/UL Compliance 150±30 mm/s Scratch Speed: Replicates 10+ years of abrasion per IEC 61730-2 - 360° Traction Direction: Tests backsheet resistance from all angles.

Precision Engineering 0.1 mm/s Speed Resolution: Ensures repeatable abrasion cycles.

Load-Cell Feedback: Auto-adjusts force for consistent 10N cutting pressure.

Durability Aircraft-Grade Aluminum Table: Resists warping under 50 kg max load.

Corrosion-Resistant Pulleys: Stainless steel construction for humid environments.

Safety First Emergency Shutoff: Dual redundant safety circuits with E-stop button.

Overload Protection: Auto-pause at 50N force to prevent sample damage.

User-Centric Design 7” Touchscreen HMI: Preloaded IEC/UL test sequences with auto-hold functions.

Voice-Guided Setup: Step-by-step audio prompts for operators.

Product Features

Modular Test Table: 1.4m × 0.65m aluminum alloy surface with quick-clamp fixtures.

Motorized Traction System: 0–300 mm/s adjustable speed with forward/reverse control.

Dynamic Force Control: 1–50N adjustable load with real-time force graphing.

Self-Calibrating System: Auto-tare and linearity checks before each test.

Rust-Resistant Frame: 304 stainless steel construction with epoxy coating.

Accessories Included

Testing Kit: 5x Diamond Indenters (10–50 μm tip radius).

10x Backsheet Sample Clamps (adjustable for 1–10 mm thickness).

Consumables: 1x Calibration Grade Abrasion Paper (100 grit).

5x Replacement Cutting Blades.

Documentation: Multilingual Quick-Start Guide (printed + digital).

Compliance Certificates for IEC/UL Standards.

Safety Gear: 2x Cut-Resistant Gloves (EN 388 Level 5).

1x Eye Protection Shield.

Software Suite: License key for ScratchTest Pro (Windows/macOS).

1-year free access to cloud-based abrasion analysis tools.

Technical Parameters

Parameter Specification

Tabletop Size 1.400mm (W) × 650mm (D)

Scratch Speed 120–180 mm/s (adjustable)

Traction Force 1–50N (0.1N resolution)

Speed Accuracy ±2% of setpoint

Power Supply 220V AC, 50/60Hz (single-phase)

Dimensions 1.600mm (W) × 800mm (D) × 1.200mm (H)

Weight 120 kg (net)
