Disposable Aluminium Foil Plate Punching Machine Seac 55as For Usa Market - China

Complete Automatic Aluminum Foil Container Making Machine Line

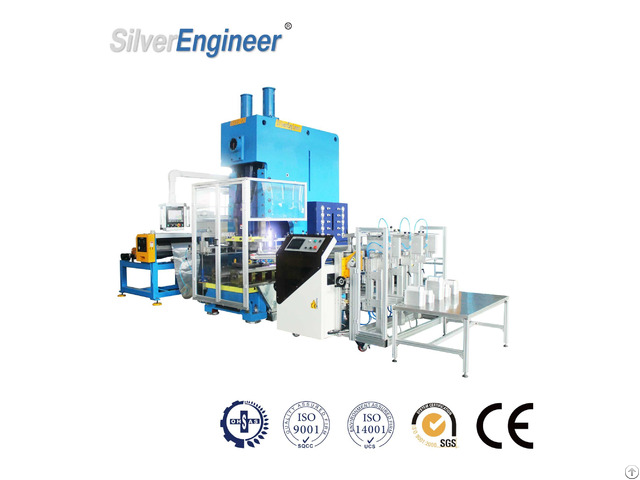

Model: SEAC-55AS

Units: Automatic Feeder+Automatic55Ton Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.

It fit for all common size Aluminum Foil Container production requested.

The Big capacity could to cover big range of size products.

Lower power requested than other old model machines.

Specification:

1 - Raw material: Aluminum foil; Thickness: 0.030mm ~0.250mm; Alloy: 8011, 8006, 3003, 3005; Temper O to H24;

2 - Good Japan's Inverter, PLC and 10inch Touch Screen control system;

3 - Max.

Width of Aluminum foil: 600mm;

4 - Max.

Diameter of Aluminum foil: 700mm;

5 - Core diameter of Aluminum foil: 76mm(152mm as Optional );

6 - Working speed: 40-75 times/min;

7 - Total Power: 13kw;

8 - Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;

9 - Install dimension: 6100*2600*3200mm; Technical Data:

Max.

Mould Size: L700*800*420mm;

Slide block stroke: 120-200mm (Standard: 180mm);

Automatic mould adjust unit: 0.5kw;

Work plate dimension: 700*950mm;

Mould handle hole dimension: 50*60mm(Diameter*Depth);

Power: 3P, 380/220V, 50/60Hz;

Net weight: 6000kg.

SEAC-55AS is two cavities capacity for Aluminum foil container production now, it have instead of the old 40Ton model, as it is more big capacity to cover container size!

Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation.

Company Contact:

• Posted By: Shanghi Silver Engineer Machinery Co.,Ltd.

• Phone: +8619812395332

• Address: No.328, Weizhong Rd., Jiashan, Zhejiang, China., Jiaxing , Zhejiang , China

• Email:

• Website: http://www.silverengineer.com

• Business Description: Silver Engineer Machinery Co.

  Ltd. focus on designing and manufacturing Automatic Smart Production Line and High Precision Mould for Aluminum Foil Containers, since 2009 - Own Brand SilverEngineer ®and GodFoil ®.

  The kinds of Aluminum Foil Containers produced by SilverEngineer ® Automation Equipment are widely used in the Baking Containers, Cooking Containers, Oven Containers, refrigerated containers, takeaway containers, laboratory containers and other packaging fields.
