Double Head Boring Machine - China

Product Introduction：

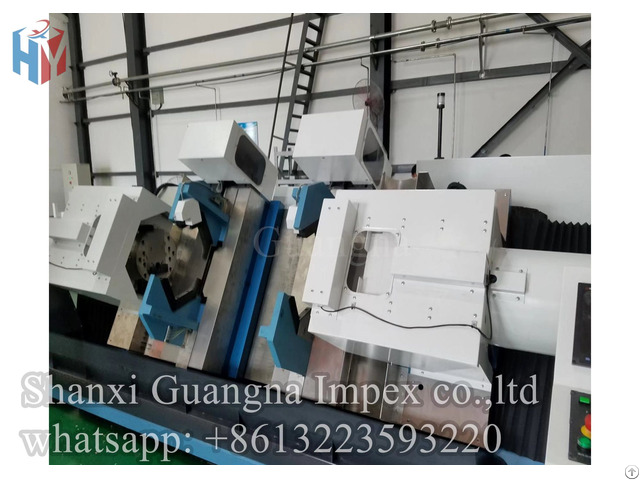

Double-head boring machine for gravure cylinder adopts double knife holders, four-axis servo control system, integrated casting bed, and rectangular guide rails.

rotogravure cylinder boring machine Using the most advanced numerical control horizontal 45 ° inclined bed production with digital operating system.

Steel Cylinder Boring Machine has sufficient strength, rigidity and good shock absorption.

Product Advantage

1 - Using the most advanced numerical control horizontal 45 ° inclined bed production with digital operating system.

2 - The roller axis and the axis of the boring cutter head from both ends are guaranteed to be on the same axis with precision ≤4um by high accurate test bar adjusting.

3 - Both ends are processed at the same time; the efficiency is more than 3 times of the traditional processing method.

4 - The roller clamping uses two sets of v-jig to fix.

The boring cutter rotation speed is not controlled by the drum diameter.

China boring machine manufacturers the drum maximum diameter could reach 100 mm, 200 mm, 300 mm, 400 mm or more (as clients' requirements).

5 - Steel Cylinder Boring Machine chip falls on the conveying chain of the chip removal machine, collected and processed by the chip removal machine.

The site is clean with a comfortable working environment.

6 - Steel Cylinder Grinding Machine also has a set of external protective cover to PREVENT IRON FILINGS SPLASH with grand appearance.

Simply enter the drum diameter; choose the parameters for plug hole.

Very convenient operation!
