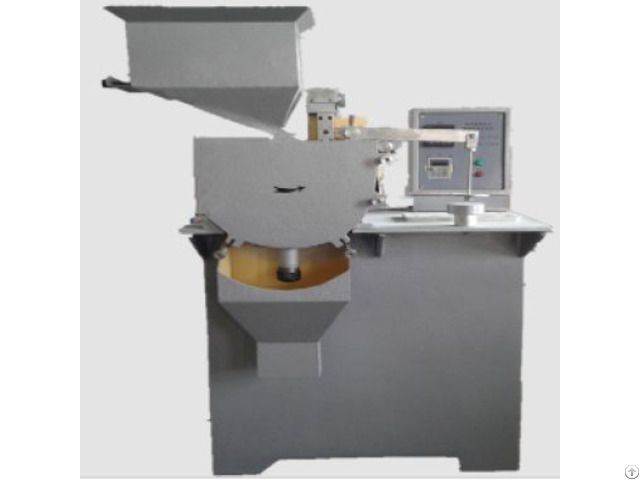

Dry Sand Rubber Wheel Wear Tester - China

Standard

ASTM G65 JBT_7705 Applicable standards

Dry and wet abrasive wear testing machines usually need to follow certain standards and specifications when testing.

Here are some common applicable standards: ASTM Standards: Standards developed by the American Society for Materials and Testing (ASTM) include content related to dry and wet abrasive wear testing.

For example, the ASTM G65 standard may specify specific methods and requirements for abrasive wear tests of dry-sand rubber wheels; The ASTM G105 standard may specify specific requirements for abrasion test methods for wet sand rubber and rubber wheels.

These standards specify parameters and requirements such as loading methods, abrasive types, test cycles, and data recording during the test process.

B Ash standard: China's machinery industry standard (B Ash) may also contain content related to dry and wet abrasive wear tests.

For example, the JB/ 7705 standard specifies the rubber wheel method in the wear test method for loose abrasive particles, which can be used to evaluate the wear resistance of materials in dry sand environments.

In addition, JB/T 9396 and other standards may specify the size of the sample, fixture design and other specific requirements.

When conducting dry and wet sand abrasive wear tests, it should be ensured that the selected standards are consistent with the test purposes and requirements, and the test methods and steps specified in the standards are strictly operated.

At the same time, it is also necessary to pay attention to the calibration and maintenance of the testing machine to ensure the accuracy and reliability of the test results.

Main uses

Dry and wet sand abrasive wear testing machine is mainly used to evaluate the wear resistance of materials in dry and wet sand abrasive environment.

By simulating the wear environment of dry sand or wet sand in actual working conditions, the testing machine can quantitatively test the wear resistance of different materials.

This kind of equipment has a wide range of application value in material research and development, product quality control, industrial production and other fields.

Specifically, the main uses of dry and wet sand abrasive wear testing machines include: Material research and development; In the development process of new materials, wear-resistant parts are an important performance index.

Dry and wet abrasive wear testing machines can help developers quickly and accurately evaluate the wear resistance of new materials, thereby guiding the optimal design of materials.

Industrial production: In industrial production, many parts need to have good wear resistance to ensure product stability and service life.

By using dry and wet sand abrasive wear testing machines to test parts, it can help enterprises screen out materials and processes with good wear resistance, thereby improving product quality.

Quality control: Dry and wet abrasive wear testing machines are also widely used in product quality control.

Through the wear resistance test of the products produced, the unqualified products can be found and treated in time to ensure that the products flowing to the market have good resistance.

Technical Parameters

Model Q-27 Maximum load 130 N rubber tire turn clockwise Rubber wheel speed 200 + 10 rpm Rubber Wheel Diameter 228.6 mm Rubber Wheel Hardness 60 (Shore hardness) Size 57*25.5 * 6mm Dimensions (L * W * H) 710*740*1600 (mm) Weight 420kg
