Eg4130 Pro 30 Input Meter Data Logger - China

price: contact company for price

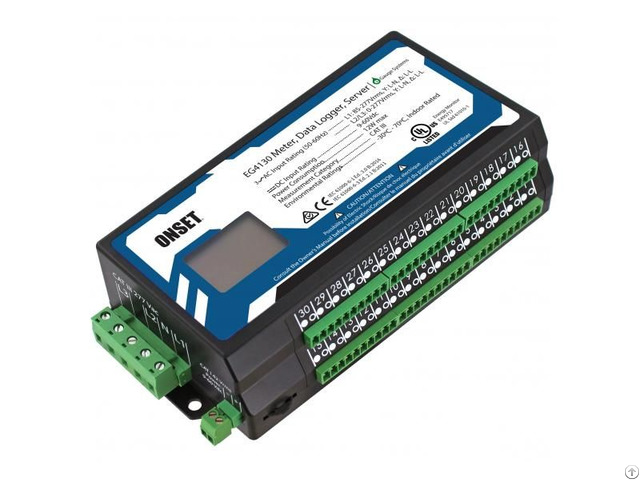

Eg4130 Pro 30 Input Meter Data Logger

Products Photos Catalog Eg4130 Pro Meter Photos Catalog

The EG4130 Pro combines an energy meter, data logger, and a web server.

This powerful combination lets you measure, store and retrieve (V, A, VAr, kWh, etc.

) data directly from the device or from a remote location via the internet.

You can view historical and live data for the lifetime of the hardware with the unit’s convenient user interface (UI).

Users have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.

Measurement

AC Voltage: L1: 85-277 Vrms

L2: 0-277 Vrms

L3: 0-277 Vrms

DC Voltage: 42 Vrms

Power: 9-60 Vdc

Measurement: +/-60 Vdc

Current: 30 channels

5-6900A max per channel

Fully isolated inputs

Frequency: 50 or 60 Hz

Logging Values: V, A, W, Wh, Hz, VA, VAr, THD, deg

Power Draw: 12W max, 2W typical

Environmental

Op.

Temperature: -30 to 70 deg C (-22 to 158 F)

Max Altitude: 4000m (13, 123ft)

Max Humidity: 80% up to 31 deg C

Meas.

Category: Overvoltage Category III

Location: Open type indoor device

Pollution Degree: 2

Data Logger Capacity

Register Count: 64 (data storage points)

Granularity:

(duration/avg) 1 hour/1 second

1 year/1 minute

10 yrs/15 minute

Device Lifetime/1 Day

Safety and Regulatory

Safety: IEC/UL 61010-1 Ed.

3.0 B: 2010

CE: IEC 61000-6-1 Ed.

3.0 B: 2016

IEC 61000-6-3 Ed.

2.1 B: 2011

FCC: FCC Title 47 CFR Part 15-Subpart B Class B

ICES-003 Information Technology Equipment Class B

Communication

Homeplug AV: Compatible with Homeplug AV- adapter within ~100ft.

on same phase as L1

Ethernet: IEEE 802.3 - LAN

User Interface

Compatible Browsers:

(Only up-to-date versions supported) Google Chrome

Firefox

Safari

Internet Explorer

Enclosure

Material: FRABS

Dimensions: 17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in)

Weight: 300g (0.66lbs)

Warranty Standard: 2 years


Company Contact:


  • Phone: 15611257114

  • Address: Suite 6B13 Huajie Plaza, 13 Dazhongsi, Haidian District, Beijing , BeiJing , China

  • Email: Email


Published date: April 2, 2019

  • Business Description: For the purpose of introduction and promotion of global advanced instrumentation and technology in the fields of terrestrial ecology, aquatic ecology and life science
