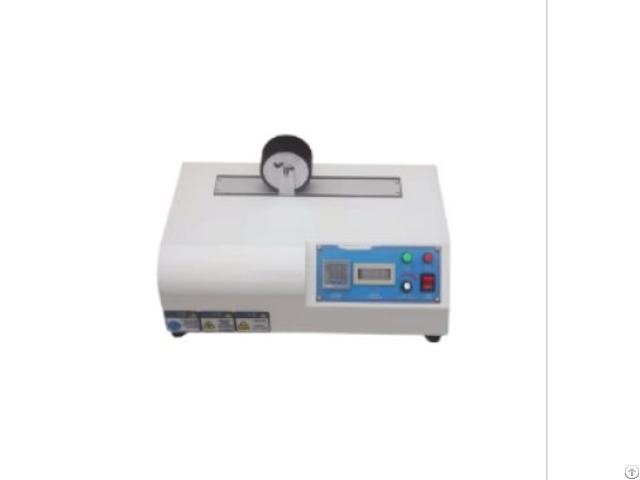

Electric Rolling Wheel Peeling Testing Machine - China

Introduction

Electronic pressure roller testing machine (automatic pressure roller machine) specializing in intaglio printing process for the production of plastic film and cellophane decorative prints (including composite film prints) for the printing of the ink layer combined with the fastness of the test test test.

Also used for vacuum coating, surface coating, composite and other related processes to form the surface layer of the adhesion of the state test test.

Standards

CNS 11888 - PSTC-8 Test Principle

The glass tape paper selected according to the standard regulations and the test environment after adjustment of the specimen ink printing surface, with the standard load, rolling speed and rolling times bonded together, placed on the regulation for a certain period of time, and then to a certain pressure and peeling speed will be peeled off, observation and measurement of the specimen ink layer is peeled off the condition, in order to determine the analysis of the combination of the printing ink layer of the fastness of bonding.

Main Parameters

Rolling Speed: 10-600mm/min Pressure Roller Load: 20 N±0.2 N Number of Rolling Times: 3 (999 can be set) Overall Dimension: 360mm(L)×230mm(B)×260mm (H) Power Supply: 220VAC 50Hz / 120VAC 60Hz Net Weight: 25 kg
