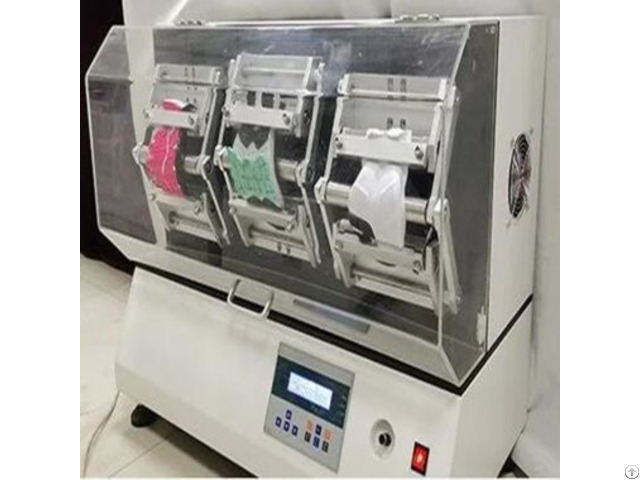

En Sole Bending Tester Satra Tm161 - China

product introduction:

the en sole bending tester is used for 90 degree bending test of the sole of rubber, eva and other zigzag shoes to detect its bending resistance and the ability to resist the growth of the incision, that is, the zigzag resistance.

reference standard:

satra tm161 - gb/t2099-2007 - eniso 20344-2011 - en iso17707 - eniso-20344 - din53543 and other standards.

product advantages:

measures key durability property: directly evaluates the flex cracking and zigzag resistance of footwear soles, a vital indicator of product lifespan.

standard compliant: designed to meet numerous relevant international and national standards for footwear sole flexing tests (en iso 17707 - satra tm161 - etc.

).

multiple testing stations: available with options for testing multiple soles simultaneously (1 or 3 stations), increasing testing throughput.

controllable test parameters: allows for precise setting and control of the bending angle and flexing speed.

automatic functions: includes features like one-key self-positioning for sample installation, simplifying operation and ensuring consistency.

safety features: equipped with a protective cover, often with inductive safety interlocks, to ensure operator safety during testing.

product features:

flexing mechanism designed to bend the sole specimen through a 90-degree angle repeatedly.

clamping system to securely hold the sole or sole component in place during the flexing action.

multiple testing stations to test 1 or 3 soles simultaneously.

adjustable speed control allowing the flexing rate to be set between 5 and 150 cycles per minute (cpm).

point function: sample installation, one-key self-positioning function for automated or semi-automated sample setup.

counter to record the total number of flexing cycles performed during the test.

zigzag shaft with a specific diameter (30mm), likely a key component of the bending mechanism.

protective cover, often inductive, to shield the operator from moving parts during the test.

robust construction to withstand continuous operation.
