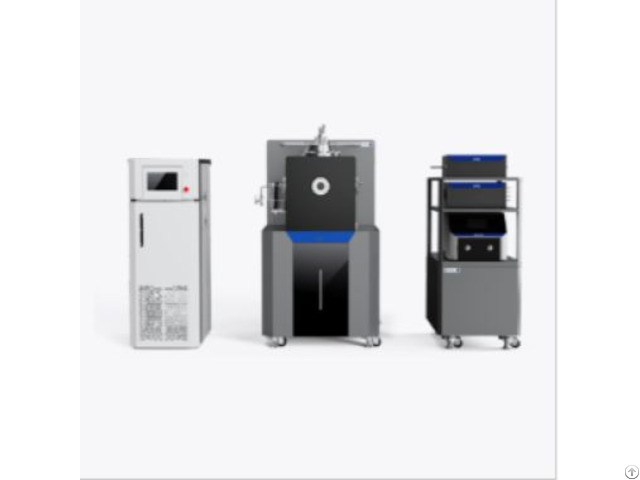

Explosion Limit Tester - China

Reference Standards: EN 1839

ASTM E918

ASTM E2079

EN 15967

UL9540A Product Features: 1 - Designed with a modular concept to flexibly meet various testing requirements.

2 - Allows for free editing of the experimental process to cater to different testing needs.

3 - The testing container is made of 316L stainless - steel, which is corrosion - resistant.

4 - It adopts a jacket temperature - control method, featuring high temperature - control efficiency.

5 - The constant - temperature conditions can be flexibly set, balancing efficiency and accuracy.

6 - Equipped with a high - efficiency vacuum pump, and the cleaning parameters can be set to fully eliminate residual effects.

7 - With a precision measurement and control system and a compensation gas - mixing algorithm, it enables precise control of gas concentration.

8 - It has a stirring function to ensure the uniformity of the mixed gas.

9 - It uses a pressure sensor specially designed for explosions, which can work at high temperatures and has good dynamic performance.

10 - Automatic control of gas samples, including automatic vacuum - pumping, automatic gas - mixing, and automatic stirring.

11 - The equipment has a safety interlock function to enhance safety.

12 - Multiple safety protections such as safety valves and burst discs effectively ensure the safety of experimenters.

Technical parameters: Operating Environment (-5 to 45)°C, <95%RH Test Vessel Temperature Control Range Room temperature to 200°C Configuration Gas Maximum Pressure Supports one atmosphere, ±0.1%FS Test Vessel Design Pressure ≥2.0MPa Explosive Pressure Sensor ≥5.0MPa, linear ±1.0%FS Explosive Pressure Acquisition System Sampling Frequency ≥5kHz Explosive Pressure Acquisition System Single Experiment Data ≥10, 000 cycles Gas Input Channel 3 channels Maximum Stirrer Speed 400rpm, speed adjustable
