Fabric Downproof Drill Flocking Performance Tester For Downgarment Quilt - China

Downproof Tester, To determine the downproof capability of fabric used for downgarmet, quilt etc, which are full with down, feather and fibers.

Take an agreed size specimen from the fabric to be tested to sew a pocket at specified size, fill with a certain Weight of down, feathers or a mixture of both, then sew the fabric up to be a testing bag.

Clamp the both sides of the bag in the holder.

After test to determine the downproof ability of the fabric by calculating the number of down and feathers through the fabric.

the down-proof property of fabrics refers to the fabrics performance to prevent down and feather from leaking out from the yarn gap.

The instrument is suitable for the down-proof property test of various fabrics of lining materials and shell fabrics used for feather and down filled products.

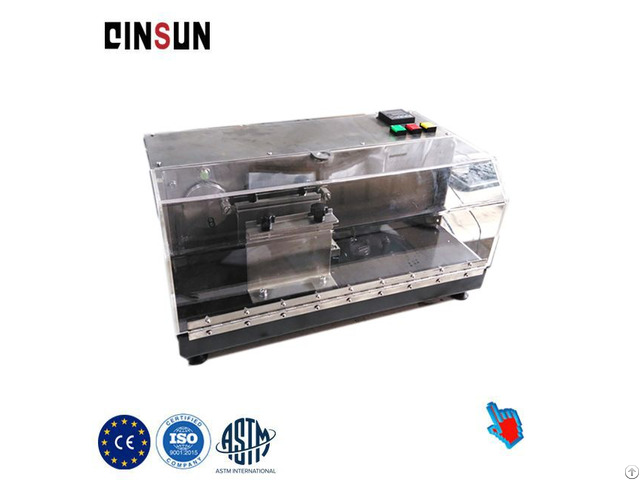

The tester consists of a rotating box with forward and reverse rotation and motor control assemblies.

The rotating box is made from organic glass material, a cube with smooth internal wall.

The instrument has functions, such as intelligent presetting of number of revolutions, automatic stop upon full revolutions, etc.

Standards

GB/T 12705.2-2009

Textiles Methods of testing the down-proof properties of fabrics-Part 2: tumbling method.

FTMS 191A Method 5530

Penetration resistance of cloth to passage of feather and down; tumbling method.

AATCC 150 Dimensional changes of garments after home laundering

EN 12132.1

Feather and down - Methods of testing the down-proof properties of fabrics -Part 1: Rubbing test Technical Parameters Items Parameters

Rotating box dimension 450mm*450mm*450mm

Rotating speed 45 rpm forward and reverse rotation

Number of revolutions 1-9999 times

Hardness 4510

Weight 1405g

Material Acrylonitrile Butadiene Rubber

Power supply AC 220V10%50Hz200W

External dimension 850mm*650mm*800mm

Weight 60Kg
