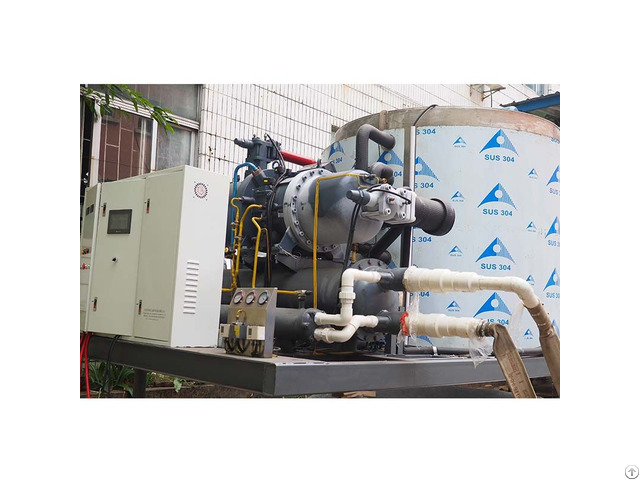

Flake Ice Machine For Fresh Water - China

The flakes are flakes, dry and loose white ice, ranging in thickness from 1.0 mm to 2.5 mm, irregular in shape and about 12 to 45 mm in diameter.

Flake ice flat in shape

Safety and Sanitation

High reliability and low breakdown rate

High efficiency and Energy Saving

Simple maintenance and convenient moving 20T flake ice machine specification

Item Name Fresh Water Ice Machine Sea Water Ice Machine

Model YTC-20TF YTC-20TS

Compressor power 80HP 100HP

Ice Evaporator Carbon Steel Stainless Steel

Daily Output 20000kg/24H 20000kg/24H

Ref.

Capacity(Kcal) 111800 139750

Temp.

Evaporator(℃) -22(℃) -18(℃)

Temp.

Condenser(℃) 40(℃) 40(℃)

Total Power (kW) 66.39 84.69

Cooling Mode Water Cooled Water Cooled

Power Supply 380V/3PH/50Hz 380V/3PH/50Hz

Refrigerant R404 R404

Unit Weight 3100 3180

Unit Size 3500x2150x2240mm 1100x820x740mm

Ice Storage Size 3200x960x1070mm 1100x960x1070mm
