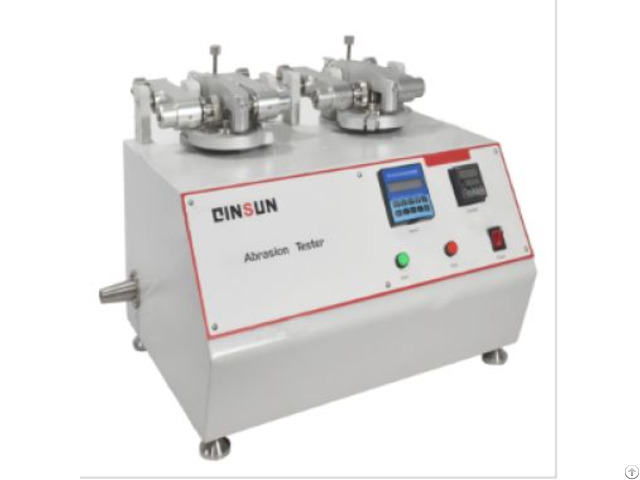

Flooring Materials Abrasion Resistance Tester - China

Standard

ASTM D3884 (Abrasion Resistance of Textile Fabrics) ISO 5470-1 (Rubber or Plastics-Coated Fabrics - Abrasion Resistance) EN 660-2 (Abrasion Resistance of PVC Floor Coverings) Taber Standard (Abrasion Testing for Coated Surfaces) Product Advantages

Unmatched Precision Equipped with a high-resolution load sensor (±0.1N accuracy) and programmable test cycles, delivering repeatable results for rigorous quality assurance.

Intuitive Operation 7-inch touchscreen control panel with multilingual support (English, Spanish, German, Chinese) and real-time data visualization for effortless test management.

Robust Engineering Constructed with stainless steel and corrosion-resistant components, ensuring longevity even in demanding industrial environments.

Adaptive Testing Capabilities Supports rotary, linear, and reciprocating abrasion methods to replicate diverse real-world wear scenarios, from residential to heavy industrial use.

Cost-Effective Maintenance Modular design allows easy replacement of consumables (e.g., abrasive wheels, clamps), minimizing downtime and operational costs.

Product Features

Customizable Testing Parameters: Adjustable test speed (10–120 rpm) and load pressure (1–50 N) to simulate light foot traffic to extreme industrial conditions.

Automatic cycle counter with pause/resume functionality for uninterrupted testing workflows.

Safety and Compliance: Equipped with an emergency stop button, over-temperature protection, and CE/UL certification for safe and reliable operation.

Data Management: Onboard memory stores over 10.000 test results, exportable via USB/Bluetooth in CSV/PDF formats for seamless data integration.

Universal Fixtures: Interchangeable clamps accommodate tiles, carpets, laminates, and vinyl flooring (max.

sample size: 300×300 mm).

Accessories

Standard Abrasive Wheels (2 pcs): Taber H-18 (general-purpose) and CS-17 (delicate surfaces).

Sample Clamps (3 sets): Designed for flat, curved, and irregularly shaped flooring materials.

Dust Cover: Transparent acrylic shield for operator safety during testing.

Calibration Kit: Precision weight set and gauge for routine equipment verification.

User Manual & Software: Multilingual digital guide + PC software for advanced data analysis and reporting.

Technical Parameters

Parameter Specification

Test Speed Range 10–120 rpm (±1 rpm)

Load Capacity 1–50 N (adjustable in 0.1N increments)

Sample Thickness Up to 20 mm

Abrasive Wheel Diameter 150 mm (standard Taber H-18/CS-17)

Power Supply 110V/220V, 50/60Hz, 300W

Dimensions (L×W×H) 600×450×800 mm

Weight 85 kg

Operating Environment 15–35°C, ≤85% RH (non-condensing)
