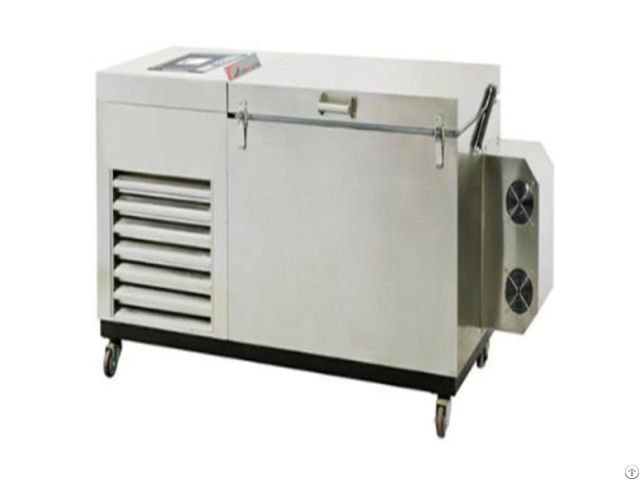

Footwear Cold Insulation Tester - China

The Footwear Cold Insulation Tester is designed to evaluate the low-temperature performance of finished shoes and footwear materials, including rubber, soles, synthetic leather, plastics, and other components.

The instrument provides a controlled cold environment to determine material and shoe adaptability to cold climates or harsh low-temperature terrains.

Constructed from rust-resistant stainless steel (SUS), the tester can be equipped with various fixtures to meet diverse standard testing requirements.

Applications

(1)Testing finished shoes for cold climate adaptability.

(2)Evaluation of rubber, synthetic leather, plastic, and sole materials under low temperatures.

(3)Thermal insulation performance assessment of footwear.

(4)Cold flex and cold impact testing of shoes and components.

(5)Quality control in footwear manufacturing for winter shoes and insulated footwear.

(6)Research and development of footwear for cold regions.

(7)Verification of compliance with industry-specific cold resistance standards.

Standards

(1)ASTM D1790 — Standard Test Methods for Footwear Cold Resistance (2)EN ISO 20344 — Personal Protective Footwear – Test Methods (3)HG/T 2411 — Footwear Cold Resistance Test (4)HG/T 2871 — Testing Methods for Low-Temperature Footwear (5)DIN 53351 — Material Cold Flexibility Test (6)SATRA TM55 — Cold Resistance Test for Footwear (7)Adidas GE-24, GE-57 — Industry Footwear Cold Testing Protocols (8)GB/T 20991-2007 — Footwear Cold Resistance Test Method Technical Parameters

Item Specification

Temperature range -25℃ – +150℃

Temperature fluctuation ≤ ±0.5℃

Temperature uniformity ≤ 2℃

Temperature accuracy ± 0.2℃

Heating time (+25℃→+85℃, no load) ~30 min

Cooling time (+25℃→-40℃, no load) ~50 min

Lead hole φ50mm, with rubber plug

Heating rate 3–5℃/min (average)

Cooling rate 0.7–1℃/min (average)

Cold medium Stainless steel balls, Ø5 mm, total mass 4 kg

Test copper plate 350 ± 5 × 150 ± 1 × 5 ± 0.1 mm

Thermometer accuracy ±0.5℃

Power supply AC220V, 50Hz

Construction Rust-resistant stainless steel (SUS)
