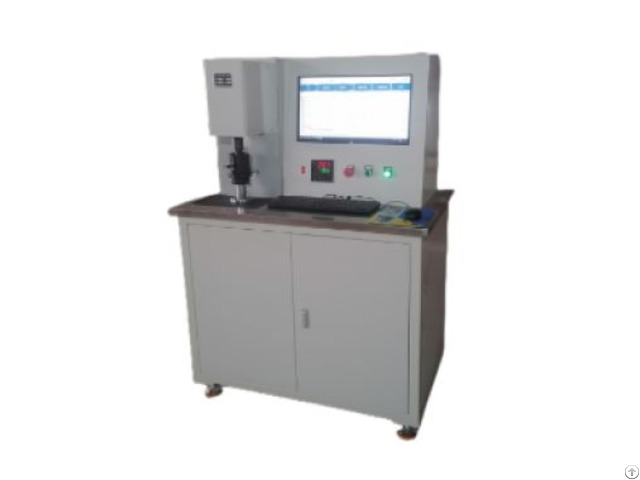

Friction And Wear Testing Machine - China

Standards

ASTM G99-04 ASTM G77-16 ISO 9352: 1995 GB/T 12444-2006 GB/T 12607-2007 GB/T 1865-2009 Application field

Petrochemical: Used to assess the long-term wear resistance of lubricating oil and grease, and to develop a variety of high-grade series of hydraulic oil, internal combustion engine oil, gear oil and other products.

Materials science: Helps researchers understand the friction and wear properties of emerging materials, providing important data support for the design and optimization of new materials.

Universities and institutes: as an important tool for teaching and research, it is used for research and exploration in the field of tribology.

Industrial field: such as subway, automobile, train, wind power, ship, construction machinery, etc., used to evaluate the friction and wear performance of various parts.

Technical Parameters

Working range of test force: 10~1000N stepless adjustable.

Relative error of test force: ±1%.

Measuring range of friction torque: 0~2500N.

mm Relative error of friction torque: ±2 Spindle speed range: 1~2000r/min Maximum output torque of main motor: 5N.

m Test medium: oil, water, mud, abrasive, etc.

Temperature control range: room temperature~260°C Maximum distance between the main shaft of the tester and the lower sub-disk: >75mm Test time control range: 1s~999999min.
