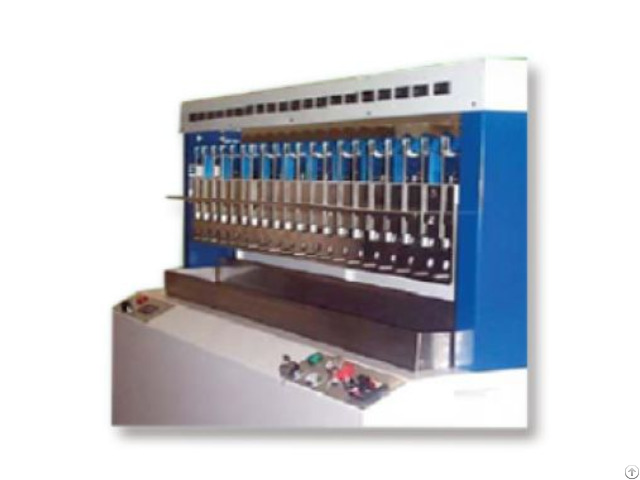

Geomembrane Fracture Resistance Tester - China

Standard

ASTM D7176 (Standard Test Method for Determining the Resistance of Geomembranes to Slow Steady-State Strain)

ISO 17548 (Geosynthetics - Determination of Tear Resistance)

GB/T 17642 (China National Standard for Geomembrane Mechanical Properties)

Product Advantages

Unmatched Precision

High-resolution pressure sensor (±0.1 kPa accuracy) captures even subtle membrane deformations, critical for HDPE, LDPE, and PVC geomembranes.

Automated Testing Protocols

Programmable test cycles simulate slow strain (0.1–10 mm/min) and rapid fracture events, replicating real-world installation and operational stresses.

Safety First Design

Explosion-proof test chamber, emergency pressure relief valve, and laser-guided specimen alignment minimize operator risk.

Industrial-Grade Durability

Stainless steel test cavity, corrosion-resistant hydraulic system, and anti-vibration feet ensure long-term reliability in demanding labs.

User-Centric Operation

10.1-inch capacitive touchscreen with multilingual support (English, Spanish, Arabic, Japanese) and AI-powered data analysis.

Product Features

Multi-Mode Testing:

Constant Pressure Test: Applies static load to assess long-term creep resistance.

Gradient Pressure Test: Increases pressure at 0.1–10 kPa/s to simulate sudden hydraulic impacts.

Cyclic Loading: Replicates tidal/wave pressure fluctuations for coastal lining applications.

Real-Time Monitoring:

High-speed camera (1, 000 FPS) captures fracture initiation and propagation, with thermal imaging for localized stress analysis.

Data Management:

Cloud-compatible software stores 10, 000+ test results, generates ISO/ASTM-compliant reports, and supports barcode scanning for sample tracking.

Universal Specimen Compatibility:

Adjustable clamps accommodate geomembranes up to 2mm thick, including textured and smooth surfaces.

Technical Parameters

Parameter Specification

Pressure Range 0–5, 000 kPa (±0.1 kPa accuracy)

Strain Rate 0.1–10 mm/min (adjustable)

Test Cavity Dimensions 300×300×50 mm (W×L×H)

Pressure Resolution 0.01 kPa

Power Supply 220V/110V AC, 50/60Hz, 1.5kW

Dimensions (L×W×H) 800×600×1, 200 mm

Weight 200 kg

Operating Environment 5–40°C, ≤85% RH (non-condensing)

Accessories Included

Specimen Clamps (4 pcs): For securing textured and smooth geomembranes during testing.

Calibration Kit: Pressure gauge and certification for annual validation.

Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.

User Manual & Software: Digital guide (multilingual) + AI analytics platform for fracture pattern recognition.

Cleaning Kit: Brush, vacuum nozzle, and lint-free cloth for post-test maintenance.

Ideal For: Geomembrane manufacturers (landfills, mining, water containment)

Civil engineering testing laboratories

Environmental protection agencies

Infrastructure contractors (tunnels, dams, canals)
