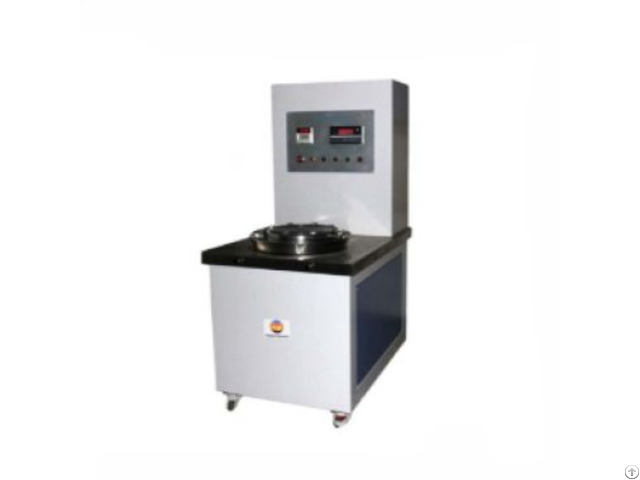

Geomembrane Hydrostatic And Permeability Tester - China

Scope of application:

It is used to test the hydrostatic pressure resistance and permeability coefficient of nonwoven composite geotextile (one cloth, one film, two cloth, one film) produced with polyethylene and polyurethane as the substrate and other materials under the specified water pressure difference conditions.

Instrument features:

Can be used in one machine, equipped with 2 sets of test fixtures, in line with the national standard hydrostatic pressure and permeability coefficient test; High precision pressure system, using gas-liquid mixed structure, to ensure stable pressure; Solenoid valve control water inlet and outlet; Equipped with percolating water collection device to prevent the collected percolating water from evaporating; Equipment safety protection device.

Technical parameters:

Specimen diameter 200mm The hole diameter of the perforated plate is 3mm±0.05mm The center distance of the perforated plate is 6mm Infiltration water collection pipe capacity 15ml The precision of the permeable water collection tube is 0.1ml Pressure range 0——2.5MPa The pressure system error is ±2%6 Dimensions 900x600x1450mm(LxWxH) Weight 150kg
